Disconnect Switches

Eaton and Lovato 3 pole disconnect switches from 25 to 100 AMP

Disconnect switches come in many different mounting options with numerous different options and accessories for any application.  From red/yellow padlockable main disconnect handles to standard black on/off rotary types and side mounted auxiliaries, neutral and fourth poles, the versatility of these switches can accommodate any application.

The most important aspects in choosing which disconnect switch is appropriate for your application is to determine the AMP size and mounting style.  For the mounting styles, there are three main options:

  1. Door mounted - The disconnect switch body is mounted to the back of the door with a through the door operator.  So when the panel door is opened, the switch body remains connected to the door.
  2. Panel mounted - In this case the switch is mounted to the back panel and has a shaft extending through the door to the handle on the face of the cabinet.  This allows for a lockout so that while the switch in is in the on position, the door cannot be opened
  3. Surface mount enclosure - For a complete disconnect solution, these switches can be provided in their own enclosure, usually with IP65 wash down protection, and can be mounted externally from a panel.
  • Eaton SVB-SW-T0 handle

    SVB-SW-T0

    Eaton/Moeller SVB-SW-T0 replacement black rotary handle for P1-25 and P1-32 3 pole disconnect switches. Can be used for replacement on P1-25/EA/SVB-SW, P1-25/V/SVB-SW, P1-25/I2/SVB-SW, P1-32/EA/SVB-SW, P1-32/V/SVB-SW, P1-32/I2/SVB-SW disconnect switches...

    MSRP: $19.80
    $14.59
    Add to Cart

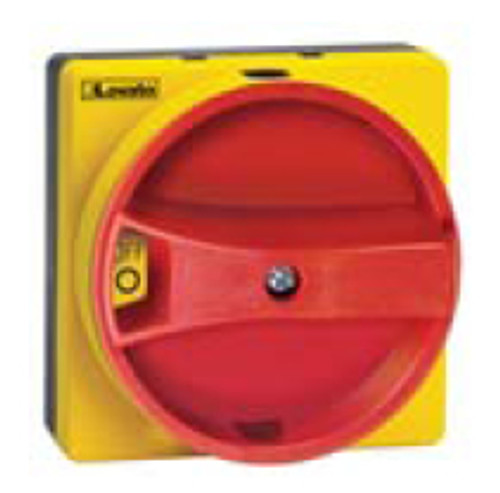

  • GAX61

    LOVATO GAX61 Replacement Door Coupling Handle. The Lovato GAX61 switch disconnector is padlockable, screw fixing IP65 rotating red/yellow.Click here to view a PDF file of this Lovato DisconnectGeneral characteristics– 16A to 125A...

    MSRP: $23.81
    $14.72
    Add to Cart
  • HI11-P1/P3E

    Disconnect Switch Auxiliary ContactAUXILIARY CONTACT WITH 1 N.O. AND 1 N.C. CONTACT. CAN BE MOUNTED ON LEFT OR RIGHT OF SWITCH BASE. FOR USE WITH P1-25/EA/SVB, P1-32/EA/SVB, P3-63/EA/SVB AND P3-100/EA/SVB.

    MSRP: $41.10
    $26.74
    Add to Cart
  • GAX7200

    LOVATO GAX7055 200mm shaft extension for GA016A-GA125A.Click here to view a PDF file of this Lovato DisconnectGeneral characteristics– 16A to 125A ratings– Available versions: direct operating and door mount.For door coupling version, use...

    MSRP: $6.52
    $4.02
    Add to Cart
  • Eaton/Moeller P1-25/EA/SVB disconnect switch

    P1-25/EA/SVB

    Eaton/Moeller P1-25/EA/SVB 25 AMP cover mounted disconnect switch with red and yellow padlock-able handle (for emergency stop applications). This 2 position on/off disconnect switch mounts to the back of the panel door with rear-facing screw terminals...

    MSRP: $145.00
    $70.50
  • Eaton/Moeller P1-25/I2/SVB-SW disconnect switch

    P1-25/I2/SVB-SW

    Eaton/Moeller P1-25/I2/SVB-SW 25 AMP surface mounted enclosure disconnect switch with black handle. This 2 position on/off disconnect switch comes in an IP65 rated surface mount enclosure for easy installation. Side mounted 2 pole auxiliary contacts can...

    MSRP: $180.00
    $87.52
    Add to Cart
  • GA040A

    LOVATO GA040A 40 AMP, 3-pole base mounted direct operating disconnect switch complete with black handle.Click here to view a PDF file of this Lovato DisconnectGeneral characteristics– 16A to 125A ratings– Available versions: direct operating...

    MSRP: $86.53
    $46.86
    Add to Cart
  • GA080A

    LOVATO GA080A 80 AMP, 3-pole base mounted direct operating disconnect switch complete with black handle.Click here to view a PDF file of this Lovato DisconnectGeneral characteristics– 16A to 125A ratings– Available versions: direct operating...

    MSRP: $123.27
    $66.79
    Add to Cart
  • GAX1011A

    LOVATO GAX1011A 2 pole auxiliary contact with 1 N.O. and 1 N.C. contact set. For use with the GA016A-GA125A and GAZ016-GAZ125 disconnect switches.Click here to view a PDF file of this Lovato DisconnectGeneral characteristics– 16A to 125A...

    MSRP: $43.26
    $26.79
    Add to Cart
  • GAZ025

    LOVATO GAZ025 25 AMP, 3 pole enclosed disconnect switch complete with red/yellow padlockable handleClick here to view a PDF file of this Lovato DisconnectGeneral characteristics– Polycarbonate housing material– For four-pole version, add...

    MSRP: $125.44
    $77.66
    Add to Cart
  • P1-25

    P1-25

    Moeller P1-25 20 AMP, 3 pole disconnect switch available in door-mounted, base-mounted or surface mounted styles with a red/yellow or black handle. Additional auxiliaries can be added.. Click here to view a PDF file of these Moeller Disconnect switches...

    MSRP: $180.00
    $70.50
    Choose Options
  • GA016A

    LOVATO GA016A 16 AMP, 3-pole base mounted direct operating disconnect switch complete with black handle.Click here to view a PDF file of this Lovato DisconnectGeneral characteristics– 16A to 125A ratings– Available versions: direct operating...

    MSRP: $68.10
    $36.89
    Add to Cart
