Disconnect Switches

Eaton and Lovato 3 pole disconnect switches from 25 to 100 AMP

Disconnect switches come in many different mounting options with numerous different options and accessories for any application.  From red/yellow padlockable main disconnect handles to standard black on/off rotary types and side mounted auxiliaries, neutral and fourth poles, the versatility of these switches can accommodate any application.

The most important aspects in choosing which disconnect switch is appropriate for your application is to determine the AMP size and mounting style.  For the mounting styles, there are three main options:

  1. Door mounted - The disconnect switch body is mounted to the back of the door with a through the door operator.  So when the panel door is opened, the switch body remains connected to the door.
  2. Panel mounted - In this case the switch is mounted to the back panel and has a shaft extending through the door to the handle on the face of the cabinet.  This allows for a lockout so that while the switch in is in the on position, the door cannot be opened
  3. Surface mount enclosure - For a complete disconnect solution, these switches can be provided in their own enclosure, usually with IP65 wash down protection, and can be mounted externally from a panel.
  • GA125C

    GA125C

    LOVATO GA125C 125 AMP, 3-pole front mounted (door mounted) disconnect switch complete with shaft..Click here to view a PDF file of this Lovato DisconnectGeneral characteristics– 16A to 125A ratings– Available versions: direct operating and...

    MSRP: $302.84
    $172.21
    Add to Cart
  • GAX1011C

    GAX1011C

    LOVATO GAX1011A 2 pole auxiliary contact with 1 N.O. and 1 N.C. contact set. For use with the GA016C-GA125C disconnect switches.Click here to view a PDF file of this Lovato DisconnectGeneral characteristics– 16A to 125A ratings– Available...

    MSRP: $43.26
    $28.13
    Add to Cart

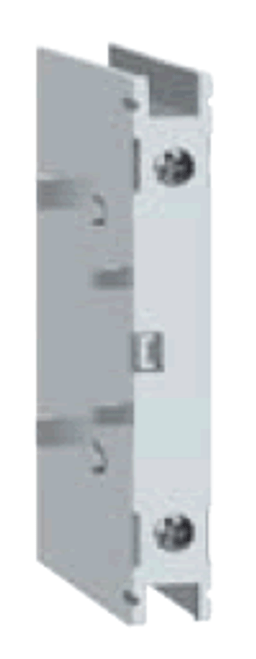

  • GAX31A

    GAX31A

    LOVATO GAX31A Ground Terminal for GA016A-GA040A disconnect switchesClick here to view a PDF file of this Lovato DisconnectGeneral characteristics– 16A to 125A ratings– Available versions: direct operating and door mount.For door coupling...

    MSRP: $21.63
    $14.06
    Add to Cart
  • GAX31C

    GAX31C

    LOVATO GAX31C Ground Terminal for GA016C-GA040C disconnect switchesClick here to view a PDF file of this Lovato DisconnectGeneral characteristics– 16A to 125A ratings– Available versions: direct operating and door mount.For door coupling...

    MSRP: $21.63
    $14.06
    Add to Cart
  • GAX32A

    GAX32A

    LOVATO GAX31A Ground Terminal for GA063A-GA125A disconnect switchesClick here to view a PDF file of this Lovato DisconnectGeneral characteristics– 16A to 125A ratings– Available versions: direct operating and door mount.For door coupling...

    MSRP: $54.13
    $35.15
    Add to Cart
  • GAX32C

    GAX32C

    LOVATO GAX31C Ground Terminal for GA063C-GA125C disconnect switchesClick here to view a PDF file of this Lovato DisconnectGeneral characteristics– 16A to 125A ratings– Available versions: direct operating and door mount.For door coupling...

    MSRP: $54.13
    $35.15
    Add to Cart
  • GAX7070

    GAX7070

    LOVATO GAX7055 70mm shaft extension for GA016A-GA125A.Click here to view a PDF file of this Lovato DisconnectGeneral characteristics– 16A to 125A ratings– Available versions: direct operating and door mount.For door coupling version, use...

    MSRP: $4.35
    $2.81
    Add to Cart
  • GAZ080

    GAZ080

    Lovato GAZ080 80 AMP 3 pole enclosed disconnect switch complete with red/yellow padlockable handleClick here to view a PDF file of this Lovato DisconnectGeneral characteristics– Polycarbonate housing material– For four-pole version, add...

    MSRP: $389.37
    $253.05
    Add to Cart
  • GAZ100

    GAZ100

    LOVATO GAZ100 100 AMP, 3 pole enclosed disconnect switch complete with red/yellow padlockable handleClick here to view a PDF file of this Lovato DisconnectGeneral characteristics– Polycarbonate housing material– For four-pole version, add...

    MSRP: $486.76
    $316.32
    Add to Cart
  • GAZ125

    GAZ125

    LOVATO GAZ125 125 AMP, 3 pole enclosed disconnect switch complete with red/yellow padlockable handleClick here to view a PDF file of this Lovato DisconnectGeneral characteristics– Polycarbonate housing material– For four-pole version, add...

    MSRP: $524.54
    $340.37
    Add to Cart
  • GX16 90U

    GX16 90U

    Lovato GX16 90U 20 AMP Rotary CAM switch - Two-pole, 1 Wafer, Scheme 90 Click here to view a PDF file on this Lovato GX Rotary CAM switch Suitable for circuit connection, changeover, switching on and off as well as motor starting. Possibility of special...

    MSRP: $32.50
    $27.58
    Add to Cart
  • GX16 92U

    GX16 92U

    Lovato GX16 92U 40 AMP Rotary CAM switch - Four-pole, 2 Wafer, Scheme 92 Click here to view a PDF file on this Lovato GX Rotary CAM switch Suitable for circuit connection, changeover, switching on and off as well as motor starting. Possibility of special...

    MSRP: $52.99
    $47.65
    Add to Cart
