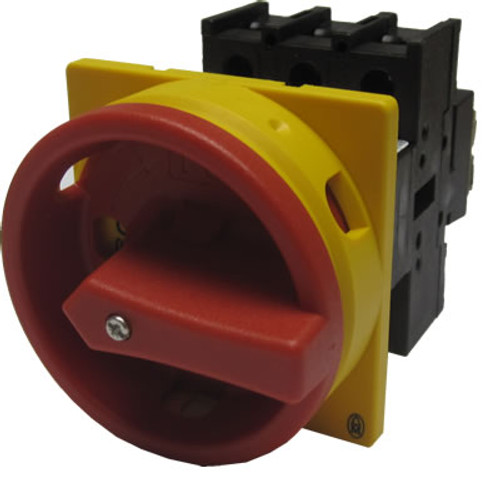

Eaton/Moeller P1-25/EA/SVB 25 AMP cover mounted disconnect switch with red and yellow padlock-able handle (for emergency stop applications). This 2 position on/off disconnect switch mounts to the back of the panel door with rear-facing screw terminals for easy installation. Side mounted 2 pole auxiliary contacts can be added to the P1-25/EA/SVB for signalling and state purposes and replacement handles can be purchased without having to replace the entire switch.
Click here to view a PDF file of this Moeller P1-25 disconnect switch
Rotary switches can be used for many switching and control applications. For example as ON-OFF switches, main switches, main/control switches, instrument switches. The switch consists of a hand actuator, the switch unit and the mounting accessories.
Maintenance, repair and safety switches all have the same electrical function. They are designed to safely isolate electrical installations (loads) from main power during maintenance and repair work and to ensure that a hazard does not arise which endangers personnel, machinery and production materials. Safety switches are main switches with an additional enclosure. Installed in the immediate vicinity of the motor or the electrical load they act as switch disconnectors for that load. It makes possible work without danger according to DIN EN 50110/VDE 0105. This is particularly important if there is any danger of the main switch being inadvertently operated.
Moeller rotary switches contain two switch lines, each with two frame sizes, that can handle loads to 100A or 75HP @ 575V. As with Moeller’s other world class products, you can expect the highest level of reliability from these devices. The “P” motor disconnect line has a robust amp and horsepower capacity, with optional built-in auxiliary contacts in our standard selection. Red handles and yellow faceplate options are available, allowing for approved emergency-stop switches in all product lines and frame sizes.
All switches are available in multiple mounting types including traditional flush and base mounting. Many switches are also available with center hole mounting as well as pre-mounted in an NEMA 3R (IP65) enclosure. Multiple mounting options provide application flexibility so you can build the switch to fit your machine instead of the other way around.
