Product Description

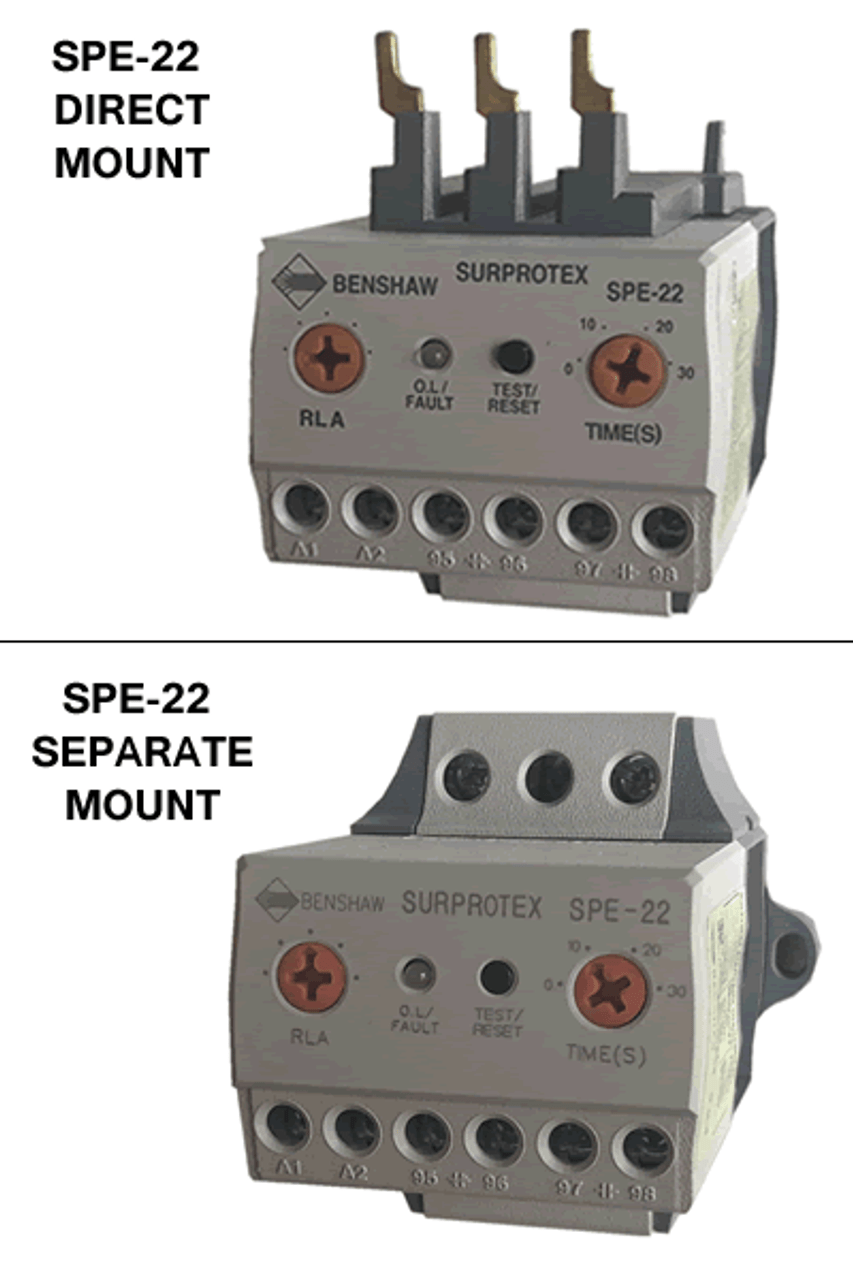

Benshaw Surprotex SPE-22 Electronic Overload relay with selectable trip class from 5-30, AMP ranges from 1 to 22 AMPS (must choose specific AMP range above), screw terminals and an option for direct mount or separate mount. Direct mount overload only mounts to RSC-9, RSC-12, RSC-18 and RSC-22 contactors. Separate mount overload relay has option for DIN rail mounting or screw mounting to panel board.
| AMP Range |
1 to 5 AMPS -or- 4 to 22 AMPS |
| Trip Class | 5, 10, 20 or 30 |
| Mounting |
Direct Mount -or- Separate Mount |
| Phase loss protection | Yes |
| Terminals | Screw |
| Mounts to |
RSC-9, RSC-12 RSC-18, RSC-22 |
Benshaw offers the SPE overload relay series for complete electronic motor protection in a small frame size. These solid state overloads can mount directly to the load side of any 3 pole contactor from 9 to 22 AMPS while providing over current and phase loss protection. The wide AMP range reduces inventory costs where one overload relay will cover the possible AMP ranges of more than 5 of its thermal overload counterparts.
