LC2D25

Product Description

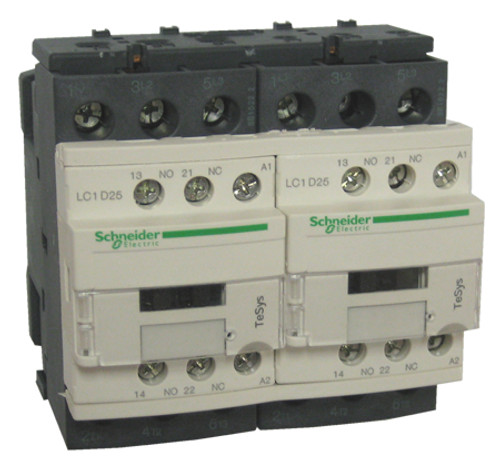

Schneider Electric LC2D25 25 AMP reversing contactor that is electrically and mechanically interlocked and has an AC or DC rated coil. This IEC reversing contactor is rated for 7.5 H.P. @ 230 volt, 15 H.P. @ 460 volt 3 Phase, has a total of 2 normally open (N.O.) and 2 normally closed (N.C.) base mounted auxiliary contacts and can be mounted on standard 35MM Din rail. The LC2D25 contactor is comprised of two LC1D25 contactors connected together with a LAD9R1V reversing kit, which includes both the mechanical interlock and line and load side wiring harnesses.  Additional LADN auxiliaries and LRD overloads can be added for signalling and motor protection.

Each Telemecanique LC2D contactor is fitted with a cover, preventing manual movement of contacts. Clear identification and separated control and power circuits reduce wiring errors. Each TeSys D-Line contactor has two standard, built-in auxiliary contacts (1 NO and 1 NC;isolated), simplifying selection and reducing inventory maintenance. Front- and side mounted auxiliary contact blocks allow for extended logic control operations.

- High-performance power contacts and protection components guarantee safe operation.
- IP 2 finger-safe terminals.
- Easy, risk-free connection with a color-coded system and wiring diagrams.
- A cover supplied with the contactor prevents manual movement of the contacts.
- Increased insulation distances between control and power for full compatibility with installations requiring very low control voltages.
- Motor starters can be upgraded easily:
– Solid connections between accessories and associated devices ensure a secure fit.
– The snap-on mounting system allows the replacement of a starter without interference to adjoining lines.
