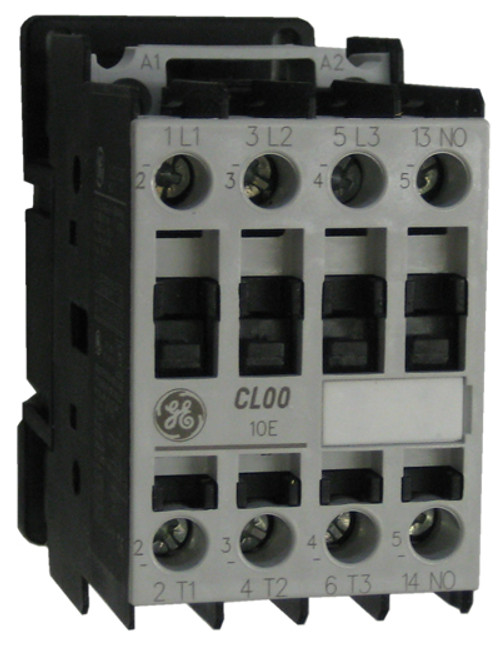

GE Industrial CL00A310T 3 pole, 25 AMP contactor that is rated for 5 H.P. @ 460 volt 3-phase and has an AC rated coil (must specify coil voltage above). This IEC rated contactor has a normally open base mounted auxiliary contact, screw terminals and mounts on standard 35MM din rail or can be screw mounted to a back panel. The CL00A310T contactor has optional auxiliary contacts that can be added, top mount up to four additional poles and side mount up to two additional poles, along with RT1 series thermal overload relays that can be directly mounted to the load side of the contactor off terminals T1-T2-T3.
|AMP Rating||10 AMP (AC-3) / 25 AMP (AC-1)|
|Coil voltage||AC coil|
|H.P. Rating||3 H.P. @ 230v / 5 H.P. @ 460v|
|Base auxiliary contact||1 normally open (N.O.)|
GE offers a line of 3 pole IEC and UL rated contactors that range from 5 H.P. @ 460volt up to 80 H.P. and accessories such as 4 pole auxiliary contact blocks and overload relays are available. Each contactor has the option to be mounted on the DIN rail or screwed to the base plate a panel for easy installation. 1 base contact (normally open) comes standard and each GE contactor has screw termination for easy wiring.
