Product Description

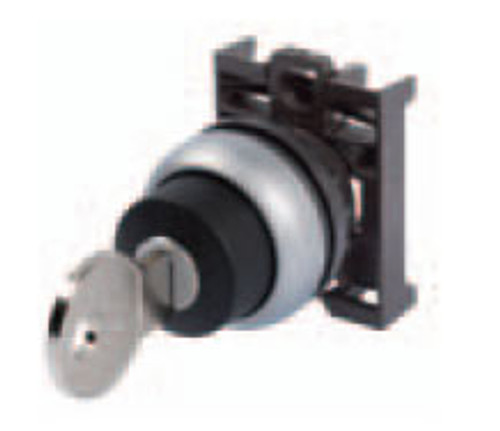

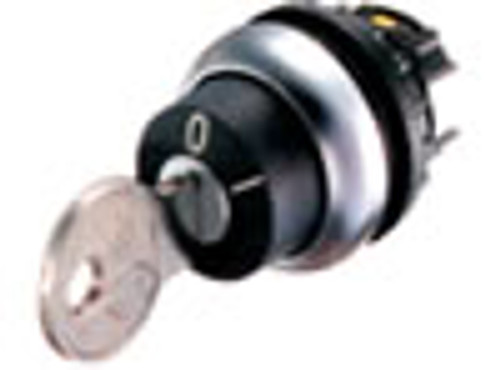

Eaton M22-WS momentary 2 position keyed selector switch with a silver bezel and is used in 22MM applications. Each selector switch comes with a M22-ES-MS1 key, a M22-A fixing adapter standard and up to 6 contact blocks can be added, either M22-K10's for normally open or M22-K01's for normally closed. The M22-WS comes with a notched hole for mounting to avoid rotation, is rated for 5 million mechanical operations and has an IP65 rating for the industries highest protection.
| Number of Positions | 2 |
| Operation | Momentary |
| Hole Diameter | 22MM |
| Bezel color | Silver |
Product Description
Eaton’s M22 industrial heavy duty pushbutton line offers a wide array of functional, attractive and ergonomically designed illuminated and non-illuminated pushbuttons, selector switches, push-pulls, alternate action and twist-to-release operators. The complete illuminated line is only offered in LED light units to ensure high-quality brightness and up to 100,000 hours of LED illumination. EATON M22 operators are available with either a silver or a black colored bezel. The space saving modular construction of the EATON M22 line makes onthe- job assembly fast and simplifies the stocking of both components and complete devices.
Features
- Field convertible pushbuttons and mushroom operators from maintained to momentary status
- Field convertible selector switches from momentary to maintained operation and vice versa offering only for all illuminated operators
- Laser engraved pushbuttons, lenses and enclosures
- Heavy-duty construction with a minimum of IP66 and UL NEMA® type 4X / 13 on front of panel operators. Many operators even carry IP67 and IP69K, for the toughest applications
