Product Description

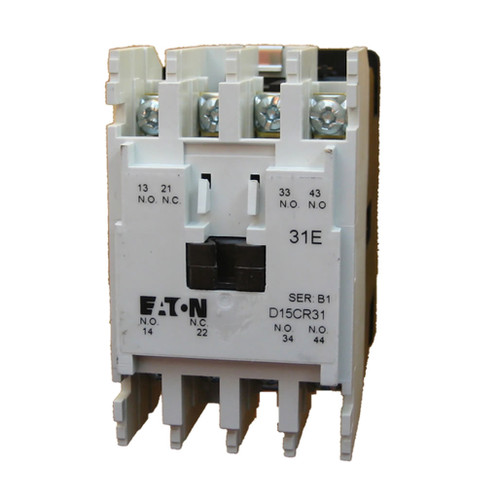

Eaton / Cutler Hammer D15CR31 Freedom Series 4 pole 10 AMP Machine Tool Relay with 3 N.O. and 1 N.C. contacts and an AC coil (must specify control voltage above). Each relay provides for additional auxiliary contacts to be added to the top (up to 4 pole) or sides (up to 2 pole) and pneumatic timers can also be added to the D15CR31 for automatic operation. This UL/CSA approved industrial relay can be base mounted or DIN rail mounted via an integrated base mounting adapter.
Click here for a catalog page on this Cutler Hammer RelayThe Eaton D15 Series of 4 Pole Control Relays comes in 5 standard configurations - 4 N.O., 3 N.O. / 1 N.C., 2 N.O. / 2 N.C., 1 N.O. / 3 N.C. and 4 N.C. all of which top and side mounted auxiliary contact blocks can be added. Up to 4 additional poles can be added via auxiliary contact blocks for up to 8 poles of control in every combination. These NEMA relays can be mounted on 35MM DIN rail or base mounted via screw down and each D15 relay has coil connections on the top and bottom for ease of installation. This series is UL and CSA Approved for use in any North America application.
