Product Description

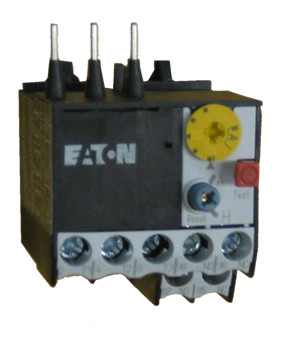

EATON XTOM006AC1 thermal overload relay with an adjustable AMP range from 4 to 6 AMPS. For use with the 3 pole Eaton XTMC9A10 and XTMC9A01 miniature contactors. Each overload comes standard with an automatic or manual reset, push-to-test button and screw terminals for easy installation. A set of auxiliary contacts are installed on the XTOM006AC1, one normally open and 1 normally closed, that can be wired to for signalling purposes or to cut power to the coil in an overload situation.
| AMP Range | 4 to 6 AMP |
| Reset | Manual or Automatic |
| Auxiliary contacts | 1 N.O. / 1 N.C. |
| Terminals | Screw |
| Mounts to |
XTMC9A10 or XTMC9A01 |
Mini Overload Relays—Bimetallic Type XTOM
- Phase failure sensitivity

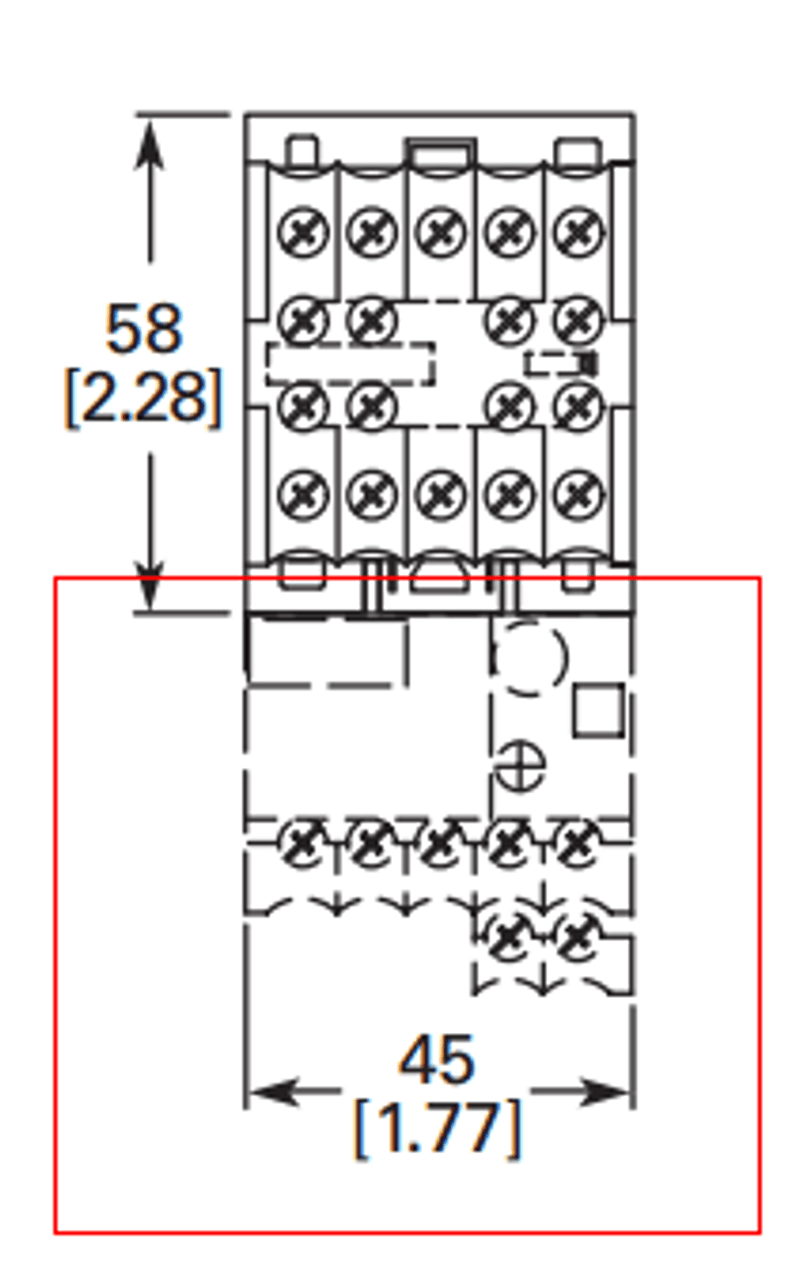

- Direct mount to XTMC and XTMF mini contactors
- Trip Class 10
- 11 settings to cover 0.1 to 12A
- Ambient temperature compensated –5° to 50°C [23° to 122°F]
- Manual and automatic reset by selector switch
- One make (NO) or one break (NC) auxiliary contact as standard
- Test/Off button
- Trip-free release
