Product Description

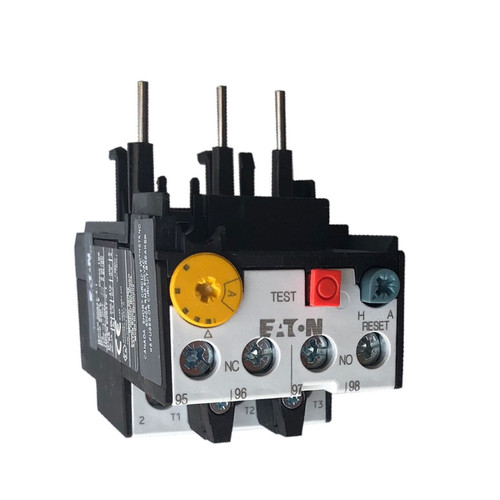

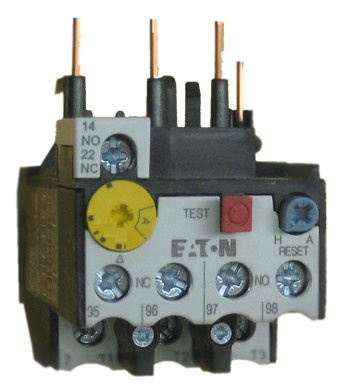

Eaton XT0B010CC1 thermal overload relay adjustable from 6 to 10 AMPS with 1 N.O and 1 N.C. auxiliaries, manual and automatic reset and phase loss protection. These thermal overloads offer Class 10 tripping (trips in 10 seconds or less) and are directly mounted to any Eaton XTCE018C, XTCE025C or XTCE032C 3 pole contactor.
| AMP Range | 6 to 10 AMPS |
| Connects to |
XTCE018C / XTCE025C XTCE032C |
| Auxiliaries | 1 N.O. / 1 N.C. |
| Reset | Manual or Automatic |
| Trip Class | 10 (10 seconds or less) |
Product Description
The XTOB line of IEC motor thermal overload relays provides an efficient motor protection solution, available up to 32 AMPS. These units can be directly mounted to the contactor or mounted separately with an optional separate mount bracket. They are rated for Class 10 protection, which will trip the unit and cut power to the coil of the contactor within 10 seconds or less in an overload condition. This level of motor protection ensures the safety of both the equipment that it is protecting and for the operators of the unit. In addition, this thermal overload comes with a trip-free release, which will prevent the device from being held closed in the event of an overload. With the option of manual or automatic reset, the operator can choose how they want to handle an over-amperage condition. Obviously a manual reset would require an operator to reset the unit while an automatic reset will restart the starter once the temperate on the main contacts has cooled to a safe level.
Features and Benefits
- Direct connect up to 250A
- Stand alone and CT type up to 630A
- Large thermal overcurrent range
- Test button
- Manual/automatic selectable reset
- NO-NC auxiliary as standard
- Class 10A (to 250A)
- Class 30 (CT type)
