Product Description

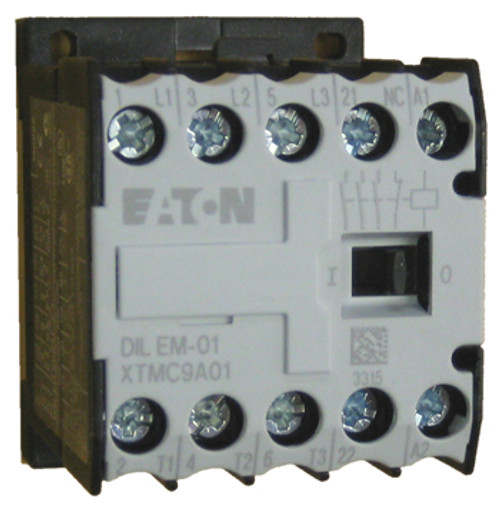

EATON XTMC9A01 miniature 9 AMP contactor rated 3 H.P. @ 230v, 5 H.P. @ 460v with 1 N.C. auxiliary base contact and an AC coil.
Product Description
Eaton’s new line of XTMC9A miniature controls includes non-reversing and reversing mini contactors, mini overload relays and snap-on accessories. A wide range of applications is possible, including small electrical motors from fractional to 5 hp (460 Vac) or up to 4 kW (400 Vac).
Application Description
Due to its compact size, the XTMC9A line of mini controls is best suited to be applied in light-duty loads, such as hoisting, packaging, material handling, heating, lighting and automation systems. XTMC9A mini contactors are a particularly compact, economic and environmentally friendly solution wherever control of small motors or loads is required.
Features
Mini Contactors—Types XTMC and XTMF, 6–9A
- AC control from 12V to 550V 50 Hz, 600V 60 Hz
- DC control from 12V to 220V
- Reversing or non-reversing
- Three- and four-pole configurations
- Three-pole XTMC
- Four-pole XTMF
- Panel or DIN rail mounting
- IP20 finger and back-of hand proof
- Low noise operation
- High degree of climatic proofing
- Large ambient temperature range –25° to 50°C [–13° to 122°F]
