Product Description
Eaton XTCR032C21 3 pole, 32 AMP AC-3 (40 AMP AC-1) reversing contactor rated 10 H.P. @ 230v, 20 HP @ 460v 3-Phase with 2 N.O. and 1 N.C. auxiliary contacts per contactor. Each contactor can have a 4 pole auxiliary contact block added for a total of 5 auxiliary contacts. The components that make up this reversing contactor are two XTCE032C01 contactors, two front mounted XTCEXFAC20 auxiliaries, a XTCEXMLC mechanical interlock and a wiring harness XTCEXRLC which jumps the line and load side poles and has an electrical interlock to ensure both contactors do not engage at the same time. XTOB thermal overloads relays can be added to the 32 AMP XTCR032C21 for complete motor protection against phase loss and over current conditions.
 |
Electrical Ratings | |
|

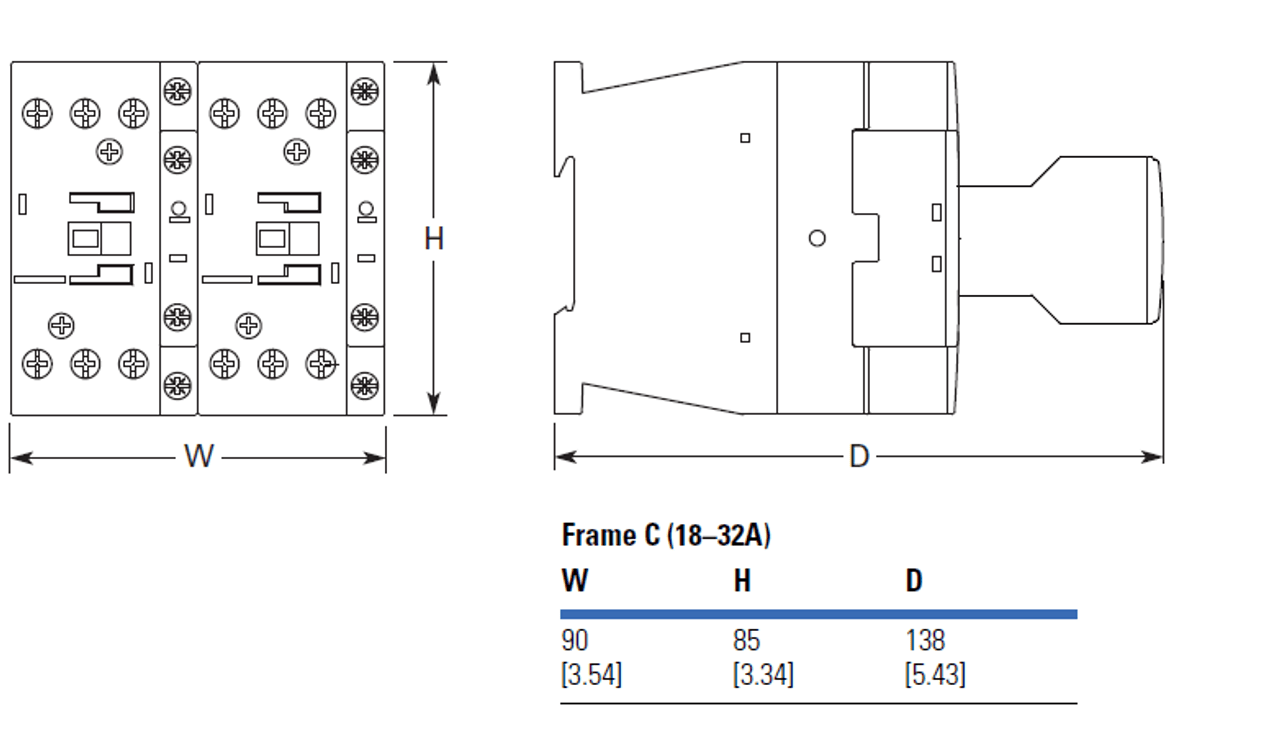

Contactor Dimensions | |
|
Coil Voltages | |
|
Auxiliary Contacts | |
|
Overload Relays |
Product Description
Eaton’s new line of XTCE contactors and starters includes non-reversing and reversing contactors, overload relays and a variety of related accessories. Because XT meets IEC, UL®, CSA® and CE standards, it is the perfect product solution for IEC applications all over the world. The compact, space saving and easy to install XT line of IEC contactors and starters is the efficient and effective solution for customer applications from 7A to 2450A.
The Eaton XTCE line includes a large offering of power control components and accessories that cover a broad range of applications and ratings:
- Three-pole contactors to 2000A
- Four-pole contactors to 200A
- Capacitor contactors to 680 kVar
- Mini contactors to 9A
- Relays to 16A
- Thermal overload relays to 630A
- Electronic overload relays to 1500A
- Manual motor protectors to 65A
- Manual motor controllers and combination motor controllers to 65A
