Product Description
Eaton XTCE065D XT IEC Contactor — 65A, 3-Pole, D-Frame
The Eaton XTCE065D is a 65A, 3-pole IEC contactor from Eaton’s XT series (also known as the Moeller DILM65). Rated at 50 HP at 460V three-phase (65A AC-3 / 88A AC-1), the XTCE065D is designed for non-reversing motor control and resistive or inductive load switching in industrial applications. The base XTCE065D has no built-in auxiliary contacts — up to 6 can be added via plug-in top-mount and side-mount blocks. The coil voltage is selected by part number suffix — see the table below. The coil is also field-replaceable without tools, a key advantage of the XT series design.
Quick Specifications
- Current Rating: 65A (AC-3) / 88A (AC-1)
- Poles: 3-pole, non-reversing
- HP Rating: 25 HP @ 230V / 50 HP @ 460V / 60 HP @ 575V (3-phase)

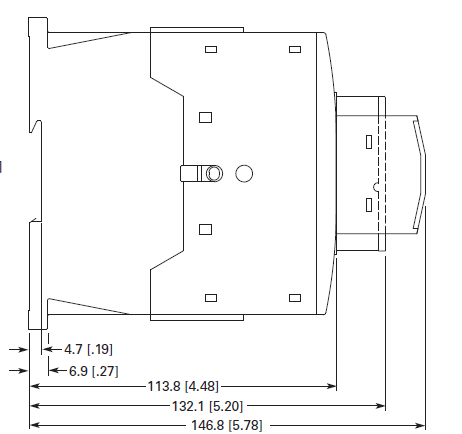

- Frame Size: D-Frame, 55mm wide
- Coil Voltage: Selected by suffix — see table below
- Coil: Field-replaceable (no tools required)
- Aux Contacts (included): None (0 NO / 0 NC) — up to 6 add-on
- Max Aux Contacts: 4-pole top-mount + 2-pole side-mount (6 total)
- Mounting: 35mm DIN rail or panel screw mount (up to 65A)
- Terminal Type: Screw terminals, IP20 finger-safe
- Wire Range: AWG 14–1 (single) / AWG 14–2 (double); torque 3.3 Nm
- Compatible Overload: XTOB series (Class 10, direct-mount)
- Also Known As: Moeller DILM65 / Eaton DILM65
- Weight: 890g (1.96 lbs)
- Certifications: UL Listed, CSA, IEC 60947-4-1, CE
XTCE065D Coil Voltage Variants — Complete Part Numbers
| Part Number | Coil Voltage | Replacement Coil |
|---|---|---|
| XTCE065D00T | 24V AC (50/60 Hz) | — |
| XTCE065D00A | 110V AC (50 Hz) / 120V AC (60 Hz) | XTCERENCOILDA |
| XTCE065D00B | 220V AC (50 Hz) / 240V AC (60 Hz) | XTCERENCOILDB |
| XTCE065D00C | 440V AC (50 Hz) / 480V AC (60 Hz) | — |
| XTCE065D00TD | 24V DC | — |
Not sure which coil voltage to order? The coil voltage label is located on the front of the contactor, top-right corner, just above the A1 screw terminal. See our guide: How to Find the Coil Voltage on an Eaton XTCE Frame D Contactor. Or call us at 1-800-222-5129.
HP Ratings by Voltage
| Supply Voltage | HP Rating (3-Phase) | Current Rating |
|---|---|---|
| 230V AC (3-phase) | 25 HP | 65A AC-3 |
| 460V AC (3-phase) | 50 HP | 65A AC-3 |
| 575V AC (3-phase) | 60 HP | 65A AC-3 |
| Any voltage (resistive) | — | 88A AC-1 |
Product Features
- Field-Replaceable Coil: Unlike most IEC contactors, the XTCE065D coil can be replaced in the field without special tools. Remove two screws from the base, separate the top from the base, release four plastic tabs, and swap the coil. Replacement coils are stocked by Kent Electrical Supply: XTCERENCOILDA (120V) and XTCERENCOILDB (240V). This eliminates the need to replace the entire contactor when a coil burns out.
- No Built-In Auxiliary Contacts: The base XTCE065D ships with no auxiliary contacts (0 NO / 0 NC). Up to 6 auxiliary contacts can be added via plug-in accessories: a 4-pole top-mounted block and a 2-pole side-mounted block. This modular approach lets you configure exactly the signalling circuits your application requires.

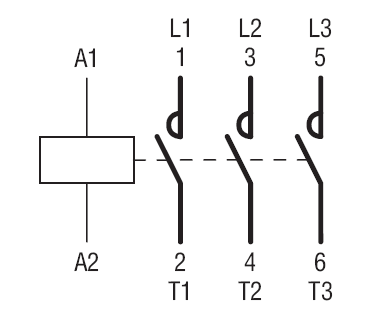

- Plug-In Accessory System: Auxiliary contact blocks, overload relays, and other accessories snap directly onto the XTCE065D frame without additional wiring or adapters. The XTOB series thermal overload relay mounts directly to the load-side terminals (T1-T2-T3) for integrated Class 10 motor protection.
- Also Known as Moeller DILM65 / Eaton DILM65: The XTCE065D is the same contactor sold under the Moeller (Klöckner-Moeller) brand name as the DILM65. Eaton acquired Moeller in 2008. If your panel documentation references a “DILM65” or “Moeller DILM65”, the XTCE065D is the direct equivalent.
- D-Frame, 55mm Wide: The XTCE065D is a Frame D contactor, 55mm wide. This is a distinct frame size from the smaller C-Frame (XTCE032C, XTCE040C) contactors. Frame D is not interchangeable with Frame C in existing panel cutouts or DIN rail assemblies.
- DIN Rail or Panel Mount: Mounts on standard 35mm DIN rail or directly to a panel backplate via screw mount. IP20 finger-safe terminals are standard.
- Global Certifications: UL Listed, CSA Certified, IEC 60947-4-1, and CE marked for worldwide installation compliance.
Stock Item – Order before 4:00 PM EST for Same-Day Shipping.
Frequently Asked Questions
What is the difference between XTCE065D and XTCE065D00A?
The XTCE065D is the base model reference for the 65A, 3-pole D-Frame XT contactor family. The full part number always includes a coil voltage suffix. XTCE065D00A is the most common US variant, with a 110V AC (50 Hz) / 120V AC (60 Hz) coil. Other suffixes indicate other coil voltages: 00T = 24V AC, 00B = 240V AC, 00C = 480V AC, 00TD = 24V DC. When ordering, always specify the complete part number including the coil voltage suffix.
Is the XTCE065D the same as the Moeller DILM65?
Yes — the XTCE065D and DILM65 are the same contactor. Eaton acquired Klöckner-Moeller (the Moeller brand) in 2008 and rebranded the product line under the Eaton XT designation. The XTCE065D is the direct successor to the Moeller DILM65, sharing the same frame, footprint, and accessory compatibility. If you are replacing a DILM65 in an existing installation, the XTCE065D is the correct drop-in replacement.
How do I find the coil voltage on my existing XTCE065D contactor?

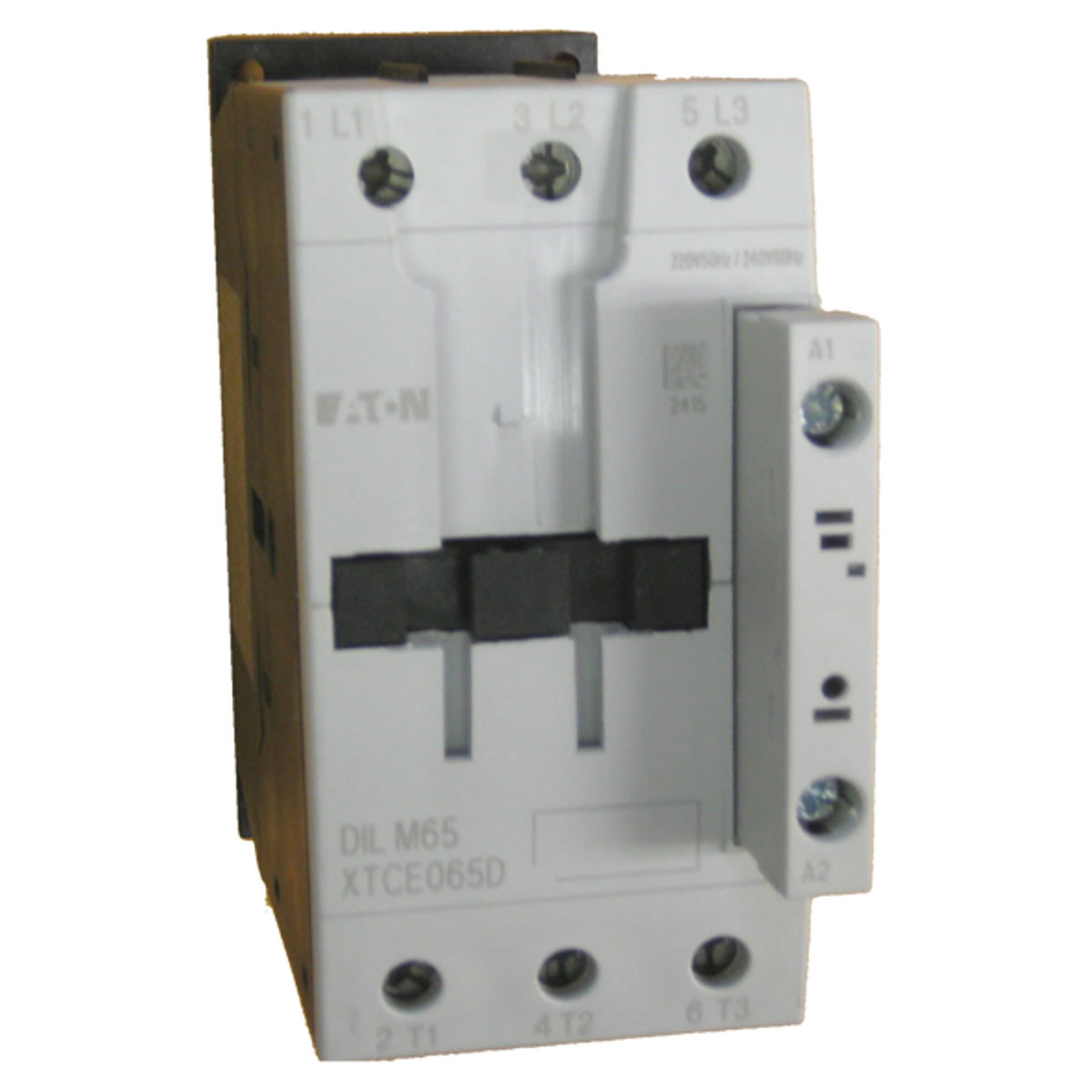

The coil voltage is printed on a label on the front of the contactor, top-right corner, just above the A1 coil terminal screw. It is not printed elsewhere on the body. This location is easy to miss — many technicians confuse the A1/A2 terminal block for an auxiliary contact. See our detailed guide: How to Find the Coil Voltage on an Eaton XTCE Frame D Contactor.
Can the coil be replaced without replacing the entire XTCE065D contactor?
Yes — the XTCE065D coil is field-replaceable. Remove the two screws on the bottom of the base, separate the top of the contactor from the base, release the four plastic tabs holding the coil, and swap in the new coil. Reassembly is the reverse. Replacement coils stocked by Kent Electrical Supply include the XTCERENCOILDA (110/120V) and XTCERENCOILDB (220/240V). This repair capability can significantly reduce downtime and replacement cost compared to swapping the entire contactor.
Which overload relay is compatible with the XTCE065D?
The Eaton XTOB series thermal overload relay is designed to mount directly to the load-side terminals (T1-T2-T3) of the XTCE065D, forming a complete Class 10 motor starter without additional wiring. Select the XTOB current range based on your motor’s full-load amperage. Call us at 1-800-222-5129 for overload selection assistance.
