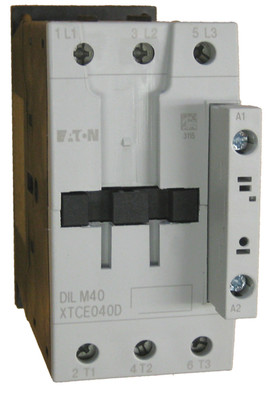

Eaton XTCE040D XT IEC Contactor — 40A, 3-Pole, D-Frame
The Eaton XTCE040D is a 40A, 3-pole IEC contactor from Eaton’s XT series (also known as the Moeller DILM40). Rated at 30 HP at 460V three-phase (40A AC-3 / 63A AC-1), the XTCE040D is designed for non-reversing motor control and resistive or inductive load switching in industrial applications. The base XTCE040D has no built-in auxiliary contacts — up to 6 can be added via plug-in top-mount and side-mount blocks. The coil voltage is selected by part number suffix — see the table below. The coil is field-replaceable without special tools, a key advantage of the XT D-Frame design shared across the XTCE040D, XTCE050D, and XTCE065D.
Quick Specifications
- Current Rating: 40A (AC-3) / 63A (AC-1)
- Poles: 3-pole, non-reversing
- HP Rating: 15 HP @ 230V / 30 HP @ 460V / 40 HP @ 575V (3-phase)

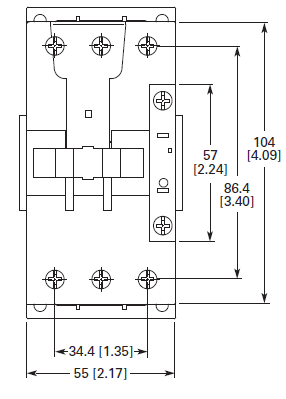

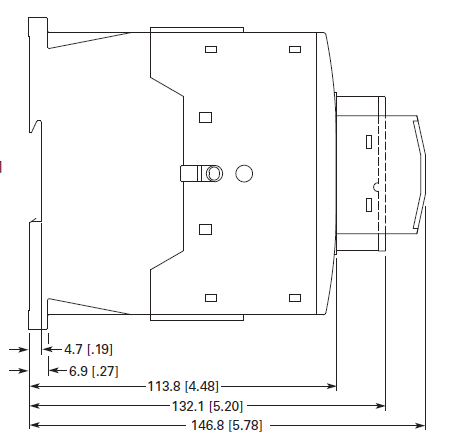

- Frame Size: D-Frame, 55mm wide
- Coil Voltage: Selected by suffix — see table below
- Coil: Field-replaceable (no special tools required)
- Aux Contacts (included): None (0 NO / 0 NC) — up to 6 add-on
- Max Aux Contacts: 4-pole top-mount + 2-pole side-mount (6 total)
- Mounting: 35mm DIN rail or panel screw mount
- Terminal Type: Screw terminals, IP20 finger-safe
- Wire Range: AWG 14–1 (single) / AWG 14–2 (double); torque 3.3 Nm
- Compatible Overload: XTOB series (Class 10, direct-mount)
- Also Known As: Moeller DILM40 / Eaton DILM40
- Certifications: UL Listed, CSA, IEC 60947-4-1, CE
XTCE040D Coil Voltage Variants — Complete Part Numbers
| Part Number | Coil Voltage | Replacement Coil |
|---|---|---|
| XTCE040D00T | 24V AC (50/60 Hz) | — |
| XTCE040D00A | 110V AC (50 Hz) / 120V AC (60 Hz) | XTCERENCOILDA |
| XTCE040D00B | 220V AC (50 Hz) / 240V AC (60 Hz) | XTCERENCOILDB |
| XTCE040D00C | 440V AC (50 Hz) / 480V AC (60 Hz) | — |
| XTCE040D00TD | 24V DC | — |
Not sure which coil voltage to order? The coil voltage label is on the front of the contactor, top-right corner, just above the A1 terminal. See our guide: How to Find the Coil Voltage on an Eaton XTCE Frame D Contactor. Or call us at 1-800-222-5129.
HP Ratings by Voltage
| Supply Voltage | HP Rating (3-Phase) | Current Rating |
|---|---|---|
| 230V AC (3-phase) | 15 HP | 40A AC-3 |
| 460V AC (3-phase) | 30 HP | 40A AC-3 |
| 575V AC (3-phase) | 40 HP | 40A AC-3 |
| Any voltage (resistive) | — | 63A AC-1 |
XTCE D-Frame Family — Select the Right Size
| Model | AC-3 Rating | HP @ 460V | Moeller Equivalent |
|---|---|---|---|
| XTCE040D (this item) | 40A | 30 HP | DILM40 |
| XTCE050D | 50A | 40 HP | DILM50 |
| XTCE065D | 65A | 50 HP | DILM65 |
Product Features
- Field-Replaceable Coil: The XTCE040D coil can be replaced in the field without special tools — remove two screws from the base, separate the top from the base, release four plastic tabs, and swap in the new coil. The XTCERENCOILDA (110/120V) and XTCERENCOILDB (220/240V) replacement coils are stocked at Kent Electrical Supply and fit all three D-Frame sizes: XTCE040D, XTCE050D, and XTCE065D. This avoids replacing the entire contactor when only the coil has failed.
- No Built-In Auxiliary Contacts: The base XTCE040D ships with no auxiliary contacts (0 NO / 0 NC). Up to 6 auxiliary contacts can be added via plug-in accessories: a 4-pole top-mounted block and a 2-pole side-mounted block, giving complete flexibility for control and signalling circuits.
- Plug-In Accessory System: Auxiliary contact blocks and overload relays snap directly onto the XTCE040D frame. The XTOB series Class 10 thermal overload relay mounts directly to the load-side terminals (T1-T2-T3) for a compact, integrated motor starter without additional wiring.
- Also Known as Moeller DILM40 / Eaton DILM40: The XTCE040D is the same contactor sold under the Moeller brand as the DILM40. Eaton acquired Klöckner-Moeller in 2008. If your panel documentation references “DILM40” or “Moeller DILM40”, the XTCE040D is the correct drop-in replacement.
- Same D-Frame as XTCE050D and XTCE065D: The XTCE040D, XTCE050D, and XTCE065D share the same 55mm-wide D-Frame body, identical accessory footprint, and the same replacement coil part numbers. If selecting between these sizes, the choice is based entirely on the motor’s HP and FLA — the physical installation is interchangeable.
- DIN Rail or Panel Mount: Mounts on standard 35mm DIN rail or panel backplate via screw mount. IP20 finger-safe terminals standard.
- Global Certifications: UL Listed, CSA Certified, IEC 60947-4-1, and CE marked for worldwide installation compliance.
Stock Item – Order before 4:00 PM EST for Same-Day Shipping.
Frequently Asked Questions
What is the difference between XTCE040D and XTCE040D00A?
The XTCE040D is the base model reference for the 40A, 3-pole D-Frame XT contactor family. The full ordering catalog number always includes a coil voltage suffix. XTCE040D00A is the most common US variant with a 110V AC (50 Hz) / 120V AC (60 Hz) coil. Other suffixes: 00T = 24V AC, 00B = 240V AC, 00C = 480V AC, 00TD = 24V DC. Always specify the complete catalog number including the coil voltage suffix when ordering.
Is the XTCE040D the same as the Moeller DILM40?
Yes — the XTCE040D and DILM40 are the same contactor. Eaton acquired Klöckner-Moeller in 2008 and rebranded the line under the Eaton XT designation. The XTCE040D is the direct successor to the Moeller DILM40, with the same frame, footprint, and accessory compatibility. If replacing a DILM40, order the XTCE040D with the matching coil voltage suffix.
What is the difference between XTCE040D, XTCE050D, and XTCE065D?
All three are D-Frame, 55mm-wide XT contactors sharing the same accessory ecosystem, mounting footprint, and field-replaceable coils. They differ only in current rating and HP capacity: XTCE040D = 40A AC-3, 30 HP @ 460V; XTCE050D = 50A AC-3, 40 HP @ 460V; XTCE065D = 65A AC-3, 50 HP @ 460V. Select based on your motor’s HP and FLA at your supply voltage. Panel installation, wiring, and coil replacement procedure are identical across all three.
Can the coil be replaced without replacing the entire XTCE040D?
Yes — the XTCE040D coil is field-replaceable. Remove two screws from the base, separate the top from the base, release four plastic tabs, and swap in the new coil. The XTCERENCOILDA (110/120V) and XTCERENCOILDB (220/240V) are stocked at Kent Electrical Supply and fit the XTCE040D, XTCE050D, and XTCE065D equally.
How do I find the coil voltage on my existing XTCE040D?
The coil voltage is printed on a label on the front of the contactor, top-right corner, just above the A1 terminal screw. It is not printed on any other part of the body. See our step-by-step guide: How to Find the Coil Voltage on an Eaton XTCE Frame D Contactor.
Does the XTCE040D qualify for same-day shipping?
Yes — stocked XTCE040D variants ship same business day from Kent Electrical Supply’s warehouse in Emmaus, PA when ordered before 4:00 PM EST. Current stock quantities are shown on each individual variant page. For bulk orders or less common coil voltage variants, call us at 1-800-222-5129 or text your RFQ to 484-425-0652.
