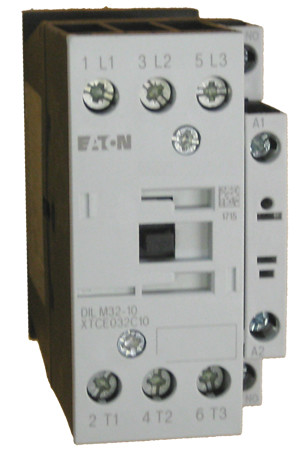

Eaton XTCE032C10 XT IEC Contactor — 32A, 3-Pole, C-Frame
The Eaton XTCE032C10 is a 32A, 3-pole IEC contactor from Eaton’s XT series (also known as the Moeller DILM32-10). Rated at 20 HP at 460V three-phase (32A AC-3), the XTCE032C10 includes 1 Normally Open (NO) auxiliary contact as standard. It is a C-Frame contactor, 45mm wide. The coil voltage is selected by catalog number suffix — see the table below. Additional auxiliary contacts can be added via front-mount blocks for up to 5 total auxiliary contacts.
Quick Specifications
- Current Rating: 32A AC-3
- Poles: 3-pole, non-reversing
- HP Rating: 10 HP @ 230V / 20 HP @ 460V / 25 HP @ 575V (3-phase)
- kW Rating: 15 kW @ 400V
- Frame Size: C-Frame, 45mm wide
- Coil Voltage: Selected by suffix — see table below
- Aux Contact (included): 1 NO only (“-10” suffix)
- Max Aux Contacts: 5 total (1 included + front-mount block)
- Mounting: 35mm DIN rail or panel screw mount
- Terminal Type: Screw terminals, IP20 finger-safe
- Compatible Overload: XTOB series (Class 10, direct T1-T2-T3 mount)
- Also Known As: Moeller DILM32-10 / Eaton DILM32-10
- Certifications: UL Listed, CSA, IEC 60947-4-1, CE
XTCE032C10 Coil Voltage Variants — Complete Part Numbers
| Part Number | Coil Voltage | Coil Type |
|---|---|---|
| XTCE032C10T | 24V AC (50/60 Hz) | AC |
| XTCE032C10TD | 24V DC | DC |
| XTCE032C10A | 110V AC (50 Hz) / 120V AC (60 Hz) | AC — Most Common US |
| XTCE032C10B | 220V AC (50 Hz) / 240V AC (60 Hz) | AC |
| XTCE032C10C | 412V AC (50 Hz) / 480V AC (60 Hz) | AC |
| XTCE032C10L | 380V AC (50 Hz) / 440V AC (60 Hz) | AC |
Not sure which coil voltage to order? Call Kent Electrical Supply at 1-800-222-5129 or text your RFQ to 484-425-0652.
XTCE032C10 Auxiliary Contact Configurations
| Aux Suffix | Included Contacts | Example (120V coil) |
|---|---|---|
| 01 | 1 NC only | XTCE032C01A |
| 10 (this item) | 1 NO only | XTCE032C10A |
| 11 | 1 NO + 1 NC | XTCE032C11A |
HP Ratings by Voltage
| Supply Voltage | HP Rating | Phase |
|---|---|---|
| 115V AC | 3 HP | Single-phase |
| 200V AC | 5 HP | Single-phase |
| 200V AC | 10 HP | Three-phase |
| 230V AC | 10 HP | Three-phase |
| 460V AC | 20 HP | Three-phase |
| 575V AC | 25 HP | Three-phase |
Eaton XT C-Frame Family — XTCE025C vs. XTCE032C
| Feature | XTCE025C10 | XTCE032C10 (this item) |
|---|---|---|
| Current (AC-3) | 25A | 32A |
| HP @ 460V | 15 HP | 20 HP |
| HP @ 575V | 20 HP | 25 HP |
| Frame Width | 45mm | 45mm |
| Aux ("-10") | 1 NO | 1 NO |
| Moeller equiv. | DILM25-10 | DILM32-10 |
| Coil replaceable? | No | No |
Eaton XT Frame Family Overview
| Frame | Model | AC-3 | HP @ 460V | Aux (base) | Moeller |
|---|---|---|---|---|---|
| B | XTCE009B | 9A | 5 HP | 1 NO | DILM9 |
| C | XTCE025C | 25A | 15 HP | 1 NO | DILM25 |
| C | XTCE032C (this item) | 32A | 20 HP | 1 NO | DILM32 |
| D | XTCE040D | 40A | 30 HP | 0 NO | DILM40 |
| D | XTCE065D | 65A | 50 HP | 0 NO | DILM65 |
Product Features
- 1 NO Auxiliary Contact Included: The XTCE032C10 ships with 1 Normally Open (NO) base-mounted auxiliary contact only. The “-10” suffix designates 1 NO. If 1 NC is needed, order the XTCE032C01 variant. If 1 NO + 1 NC is needed, order the XTCE032C11 variant. Additional contacts can be added via front-mount blocks up to 5 total.
- C-Frame — 45mm Wide: The XTCE032C10 shares the same 45mm physical frame width as the XTCE025C. It is the higher-current C-Frame option, rated 32A AC-3 vs. the XTCE025C’s 25A. Unlike the D-Frame contactors (XTCE040D–XTCE065D), the C-Frame coil is not field-replaceable.
- Also Known as Moeller DILM32-10 / Eaton DILM32-10: The XTCE032C10 is the same contactor sold under the Moeller brand as the DILM32-10. If your panel documentation references “DILM32-10” or “Moeller DILM32-10”, the XTCE032C10 is the correct equivalent.
- XTOB Overload Relay Compatible: The Eaton XTOB series Class 10 thermal overload relay mounts directly to the load-side terminals (T1-T2-T3) of the XTCE032C10 for a compact, wiring-free motor starter assembly. The same XTOB series is compatible across the B-Frame and C-Frame XTCE contactors.
- DIN Rail or Panel Mount: Mounts on standard 35mm DIN rail or directly to a panel backplate via screw mount. IP20 finger-safe terminals standard.
- Global Certifications: UL Listed, CSA Certified, IEC 60947-4-1, CE marked.
Stock Item – Order before 4:00 PM EST for Same-Day Shipping.
Frequently Asked Questions
What is the difference between the XTCE032C10 and the XTCE025C10?
Both are C-Frame, 45mm wide contactors with 1 NO auxiliary contact and non-replaceable coils. The key difference is current and HP capacity. The XTCE025C10 is rated 25A AC-3 / 15 HP @ 460V / 20 HP @ 575V. The XTCE032C10 is rated 32A AC-3 / 20 HP @ 460V / 25 HP @ 575V. The coil suffix system (A, B, C, T, TD) and XTOB overload compatibility are identical. They are the same physical frame size and not physically interchangeable with the D-Frame XTCE040D (which is 55mm wide).
Is the XTCE032C10 the same as the Moeller DILM32-10?
Yes — the XTCE032C10 and DILM32-10 are the same contactor. Eaton acquired Klöckner-Moeller in 2008 and rebranded the line under the XT designation. The XTCE032C10 is the direct successor to the Moeller DILM32-10, sharing the same frame, footprint, and accessory compatibility. If replacing a DILM32-10, order the XTCE032C10 with the matching coil voltage suffix.
Does the XTCE032C10 come with 1 NO or 1 NO + 1 NC?
The XTCE032C10 comes with 1 Normally Open (NO) auxiliary contact only. The “-10” suffix designates 1 NO. It does not include a normally closed contact. If your application requires 1 NO + 1 NC, order the XTCE032C11 variant. If only a normally closed contact is needed, order XTCE032C01. Additional contacts can be added via front-mount accessory blocks.
Can the XTCE032C10 replace an XTCE040D in an existing panel?
No — the XTCE032C (C-Frame, 45mm) and XTCE040D (D-Frame, 55mm) are different physical sizes and are not interchangeable in existing panel cutouts. The D-Frame is also wider, has a field-replaceable coil, and starts with 0 NO/0 NC built-in aux contacts. The XTCE032C is the appropriate choice when replacing a DILM32-10 or when the application requires 20 HP @ 460V within a 45mm frame footprint.
What coil voltage suffix codes apply to the XTCE032C10?
The coil voltage is specified by a letter appended after the aux contact suffix. Common codes: A = 120V AC (most common US), B = 240V AC, C = 480V AC, T = 24V AC, TD = 24V DC. Full example: XTCE032C10A = 120V AC coil, 1 NO aux. These suffix codes are identical to those used on the XTCE025C series.
Does the XTCE032C10 qualify for same-day shipping?
Yes — stocked XTCE032C10 variants ship same business day from Kent Electrical Supply’s warehouse in Emmaus, PA when ordered before 4:00 PM EST. For bulk orders or less common coil voltage variants, call us at 1-800-222-5129 or text your RFQ to 484-425-0652.
