Product Description

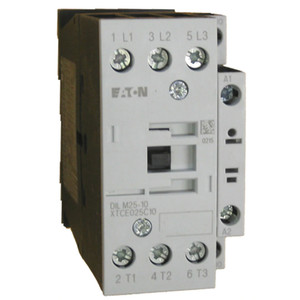

Eaton XTCE025C10 XT IEC Contactor — 25A, 3-Pole, C-Frame
The Eaton XTCE025C10 is a 25A, 3-pole IEC contactor from Eaton’s XT series (also known as the Moeller DILM25-10). Rated at 15 HP at 460V three-phase (25A AC-3), the XTCE025C10 includes 1 Normally Open (NO) auxiliary contact as standard. It is a C-Frame contactor, 45mm wide. The coil voltage is selected by catalog number suffix — see the table below. Additional auxiliary contacts can be added via front-mount blocks for up to 5 total auxiliary contacts.
Quick Specifications
- Current Rating: 25A (AC-3)
- Poles: 3-pole, non-reversing
- HP Rating: 7.5 HP @ 230V / 15 HP @ 460V / 20 HP @ 575V (3-phase)
- Frame Size: C-Frame, 45mm wide
- Coil Voltage: Selected by suffix — see table below
- Aux Contact (included): 1 NO only — “-10” suffix
- Max Aux Contacts: 5 total (1 included + 4-pole front-mount block)
- Mounting: 35mm DIN rail or panel screw mount
- Terminal Type: Screw terminals, IP20 finger-safe
- Wire Torque: 3.2 Nm (28.3 lb·in)
- Compatible Overload: XTOB series (Class 10, direct T1-T2-T3 mount)
- Also Known As: Moeller DILM25-10 / Eaton DILM25-10
- Weight: 430g (0.95 lbs)
- Certifications: UL Listed, CSA, IEC 60947-4-1, CCC, CE
XTCE025C10 Coil Voltage Variants — Complete Part Numbers
| Part Number | Coil Voltage | Coil Type |
|---|---|---|
| XTCE025C10T | 24V AC (50/60 Hz) | AC |
| XTCE025C10TD | 24V DC | DC |
| XTCE025C10A | 110V AC (50 Hz) / 120V AC (60 Hz) | AC — Most Common US |
| XTCE025C10E | 208V AC (60 Hz) | AC |
| XTCE025C10G2 | 220V AC (50 Hz) / 240V AC (60 Hz) | AC |
| XTCE025C10B | 220V AC (50 Hz) / 240V AC (60 Hz) | AC |
| XTCE025C10C | 412V AC (50 Hz) / 480V AC (60 Hz) | AC |
Not sure which coil voltage to order? Call Kent Electrical Supply at 1-800-222-5129 or text your RFQ to 484-425-0652.
XTCE025C10 Auxiliary Contact Configurations
| Aux Suffix | Included Contacts | Example (120V coil) |
|---|---|---|
| 01 | 1 NC only | XTCE025C01A |
| 10 (this item) | 1 NO only | XTCE025C10A |
| 11 | 1 NO + 1 NC | XTCE025C11A |
HP Ratings by Voltage
| Supply Voltage | HP Rating | Phase |
|---|---|---|
| 115V AC | 2 HP | Single-phase |
| 200V AC | 3 HP | Single-phase |
| 230V AC | 7.5 HP | Three-phase |
| 460V AC | 15 HP | Three-phase |
| 575V AC | 20 HP | Three-phase |
Eaton XT Frame Family Overview
| Frame | Model | AC-3 | HP @ 460V | Aux (base) | Moeller |
|---|---|---|---|---|---|
| B | XTCE009B | 9A | 5 HP | 1 NO | DILM9 |
| C | XTCE025C (this item) | 25A | 15 HP | 1 NO | DILM25 |
| D | XTCE040D | 40A | 30 HP | 0 NO | DILM40 |
| D | XTCE065D | 65A | 50 HP | 0 NO | DILM65 |
Product Features
- 1 NO Auxiliary Contact Included: The XTCE025C10 ships with 1 Normally Open (NO) base-mounted auxiliary contact. This is 1 NO only — not 1 NO + 1 NC. The “-10” suffix designates 1 NO. If 1 NC is needed, order the XTCE025C01 variant. If 1 NO + 1 NC is needed, order the XTCE025C11 variant. Additional contacts can be added via front-mount blocks up to 5 total.
- C-Frame — 45mm Wide: The XTCE025C10 is a C-Frame contactor, 45mm wide. This places it between the B-Frame (XTCE009B, 9A) and D-Frame (XTCE040D, 40A) in the Eaton XT family. Unlike the D-Frame contactors (XTCE040D–XTCE065D), the C-Frame coil is not field-replaceable in the same draw-out cassette design.
- Also Known as Moeller DILM25-10 / Eaton DILM25-10: The XTCE025C10 is the same contactor sold under the Moeller brand as the DILM25-10. Eaton acquired Klöckner-Moeller in 2008. If your panel documentation references “DILM25-10” or “Moeller DILM25-10”, the XTCE025C10 is the correct equivalent.
- XTOB Overload Relay Compatible: The Eaton XTOB series Class 10 thermal overload relay mounts directly to the load-side terminals (T1-T2-T3) of the XTCE025C10 for a compact, wiring-free motor starter assembly.
- DIN Rail or Panel Mount: Mounts on standard 35mm DIN rail or directly to a panel backplate via screw mount. IP20 finger-safe terminals standard.
- Global Certifications: UL Listed, CSA Certified, IEC 60947-4-1, CCC, CE marked for worldwide installation compliance.
Stock Item – Order before 4:00 PM EST for Same-Day Shipping.
Frequently Asked Questions
Does the XTCE025C10 come with 1 NO or 1 NO + 1 NC auxiliary contacts?
The XTCE025C10 comes with 1 Normally Open (NO) auxiliary contact only. The “-10” suffix in the catalog number designates 1 NO. It does not include a normally closed contact. If your application requires 1 NO + 1 NC, order the XTCE025C11 variant (suffix “11”). If only a normally closed contact is needed, order XTCE025C01. Additional contacts beyond the base can be added via front-mount accessory blocks.
Is the XTCE025C10 the same as the Moeller DILM25-10?
Yes — the XTCE025C10 and DILM25-10 are the same contactor. Eaton acquired Klöckner-Moeller in 2008 and rebranded the line under the XT designation. The XTCE025C10 is the direct successor to the Moeller DILM25-10, sharing the same frame, footprint, and accessory compatibility. If replacing a DILM25-10, order the XTCE025C10 with the matching coil voltage suffix.
What is the difference between the C-Frame XTCE025C and the D-Frame XTCE040D?
The XTCE025C is a C-Frame, 45mm wide, 25A AC-3 contactor with 1 NO auxiliary contact included. The XTCE040D is a D-Frame, 55mm wide, 40A AC-3 contactor with no built-in auxiliary contacts (0 NO/0 NC base). The D-Frame also features a field-replaceable draw-out coil; the C-Frame does not. These are different frame families and are not physically interchangeable in existing panel cutouts.
What coil voltage suffix codes are used on the XTCE025C10?
The coil voltage is specified by a letter appended after the aux contact suffix. Common codes: A = 120V AC, B or G2 = 240V AC, C = 480V AC, T = 24V AC, TD = 24V DC, E = 208V AC. The full catalog number format is XTCE025C + aux suffix + coil letter. For example: XTCE025C10A = 120V AC coil, 1 NO aux; XTCE025C10C = 480V AC coil, 1 NO aux.
Which overload relay is compatible with the XTCE025C10?
The Eaton XTOB series Class 10 thermal overload relay is designed to mount directly to the load-side terminals of the XTCE025C10, forming a complete IEC motor starter. Select the XTOB current range based on your motor’s full-load amperage. Call us at 1-800-222-5129 for overload selection assistance.
Does the XTCE025C10 qualify for same-day shipping?
Yes — stocked XTCE025C10 variants ship same business day from Kent Electrical Supply’s warehouse in Emmaus, PA when ordered before 4:00 PM EST. Current stock is shown on individual variant pages. For bulk orders or less common coil voltage variants, call us at 1-800-222-5129 or text your RFQ to 484-425-0652.
