Product Description

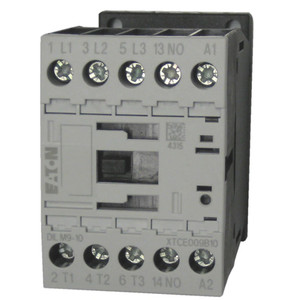

Eaton XTCE009B10 XT IEC Contactor — 9A, 3-Pole, B-Frame
The Eaton XTCE009B10 is a 9A, 3-pole IEC contactor from Eaton’s XT series (also known as the Moeller DILM9-10). Rated at 5 HP at 460V three-phase (9A AC-3 / 20A AC-1), the XTCE009B10 includes 1 Normally Open (NO) auxiliary contact as standard. It is a B-Frame contactor, 45mm wide, suitable for compact panel installations. The coil voltage is selected by catalog number suffix — see the table below. Up to 4 additional auxiliary contacts can be added via a front-mount block for a total of 5 auxiliary contacts.
Quick Specifications
- Current Rating: 9A (AC-3) / 20A (AC-1)
- Poles: 3-pole, non-reversing
- HP Rating: 3 HP @ 230V / 5 HP @ 460V / 7.5 HP @ 575V (3-phase)
- Frame Size: B-Frame, 45mm wide
- Coil Voltage: Selected by suffix — see table below
- Aux Contact (included): 1 NO (base-mounted)
- Max Aux Contacts: 5 total (1 included + 4-pole front-mount block)
- Mounting: 35mm DIN rail or panel screw mount
- Terminal Type: Screw terminals, IP20 finger-safe
- Compatible Overload: XTOB series (Class 10, direct T1-T2-T3 mount)
- Also Known As: Moeller DILM9-10 / Eaton DILM9-10
- Weight: ~1 kg
- Certifications: UL Listed, CSA, IEC 60947-4-1, CCC, CE
XTCE009B10 Coil Voltage Variants — Complete Part Numbers
| Part Number | Coil Voltage | Coil Type |
|---|---|---|
| XTCE009B10A | 110V AC (50 Hz) / 120V AC (60 Hz) | AC — Most Common US |
| XTCE009B10B | 220V AC (50 Hz) / 240V AC (60 Hz) | AC |
| XTCE009B10C | 415V AC (50 Hz) / 480V AC (60 Hz) | AC |
| XTCE009B10TD | 24V DC | DC |
Not sure which coil voltage to order? Call Kent Electrical Supply at 1-800-222-5129 or text your RFQ to 484-425-0652. We stock the most common variants and can source others.
HP Ratings by Voltage
| Supply Voltage | HP Rating | Phase |
|---|---|---|
| 115V AC | 0.5 HP | Single-phase |
| 230V AC | 1 HP | Single-phase |
| 230V AC | 3 HP | Three-phase |
| 460V AC | 5 HP | Three-phase |
| 575V AC | 7.5 HP | Three-phase |
Understanding the XTCE009B10 Catalog Number
| Position | Code | Meaning |
|---|---|---|
| Series | XTCE | XT IEC standard contactor |
| Current | 009 | 9A AC-3 rating |
| Frame | B | B-Frame, 45mm wide |
| Aux contacts | 10 | 1 N.O. auxiliary contact included |
| Coil voltage | A, B, C, TD… | Coil voltage (must be specified at order) |
Product Features
- 1 NO Auxiliary Contact Included: Unlike the larger D-Frame XT contactors (XTCE040D–065D) which ship with no built-in auxiliary contacts, the B-Frame XTCE009B10 includes 1 Normally Open (NO) auxiliary contact pre-installed. Up to 4 additional contacts can be added via a front-mount auxiliary block (4-pole) for a total of 5 auxiliary contacts.
- B-Frame — 45mm Wide Compact Design: The XTCE009B10 is a B-Frame contactor, 45mm wide. This is narrower than the D-Frame XTCE040D–065D (55mm) and is designed for compact panel installations where space is at a premium. The B-Frame and D-Frame are not interchangeable in the same panel cutout or DIN rail assembly.
- Direct-Mount XTOB Overload Relay: The Eaton XTOB series Class 10 thermal overload relay mounts directly to the load-side terminals (T1-T2-T3) of the XTCE009B10, forming a compact integrated motor starter assembly without additional wiring.
- Also Known as Moeller DILM9-10 / Eaton DILM9-10: The XTCE009B10 is the same contactor sold under the Moeller brand as the DILM9-10. Eaton acquired Klöckner-Moeller in 2008. If your panel documentation or replacement parts list references “DILM9-10” or “Moeller DILM9-10”, the XTCE009B10 is the correct equivalent.
- UL/IEC Dual-Rated: The XTCE009B10 carries both UL 508 (North American) and IEC 60947-4-1 (international) ratings, making it suitable for panels built to either standard. Also holds CSA, CCC, and CE certifications.
- DIN Rail or Panel Screw Mount: Mounts on standard 35mm DIN rail or panel backplate. IP20 finger-safe terminal protection standard.
Stock Item – Order before 4:00 PM EST for Same-Day Shipping.
Frequently Asked Questions
What is the difference between XTCE009B10 and XTCE009B10A?
The XTCE009B10 is the base model reference for the 9A B-Frame XT contactor with 1 NO auxiliary contact. The coil voltage is specified by an additional letter suffix appended to the end of the catalog number. XTCE009B10A = 120V AC coil (most common in the US), XTCE009B10B = 240V AC, XTCE009B10C = 480V AC, and XTCE009B10TD = 24V DC. Always specify the complete catalog number including the coil voltage letter when ordering.
Is the XTCE009B10 the same as the Moeller DILM9-10?
Yes — the XTCE009B10 and DILM9-10 are the same contactor. Eaton acquired Klöckner-Moeller in 2008 and rebranded the product line under the Eaton XT designation. The XTCE009B10 is the direct successor to the Moeller DILM9-10 and shares the same frame, footprint, terminal layout, and accessory compatibility. If replacing a DILM9-10, order the XTCE009B10 with the matching coil voltage suffix.
How does the XTCE009B10 compare to the Schneider LC1D09 or Siemens 3RT2015?
All three are 9A, 3-pole IEC contactors rated for 5 HP at 460V three-phase with 1 NO auxiliary contact included. The key practical differences are frame width and accessory compatibility: the XTCE009B10 is 45mm wide (B-Frame), the Schneider LC1D09 is also compact but uses Schneider-specific LA1D auxiliary blocks, and the Siemens 3RT2015 uses Siemens-specific accessories. Overload relays and auxiliary blocks are not interchangeable between these brands. Select based on what’s already installed in the panel and what accessories are needed.
What is the difference between XTCE009B10 (B-Frame) and XTCE065D (D-Frame)?
The XTCE009B10 is a B-Frame, 45mm wide, 9A AC-3 contactor with 1 NO auxiliary contact included and a maximum of 5 total auxiliary contacts. The XTCE065D is a D-Frame, 55mm wide, 65A AC-3 contactor with no built-in auxiliary contacts and a maximum of 6 additional contacts. The D-Frame also has a field-replaceable draw-out coil — the B-Frame does not. These are different frame families and are not physically interchangeable.
What does the "10" mean in XTCE009B10?
In the Eaton XT series catalog number structure, the digits after the frame letter indicate the auxiliary contact configuration included with the contactor. "10" means 1 Normally Open (NO) auxiliary contact is pre-installed. Other configurations include "01" (1 NC) and "00" (no aux contacts). The coil voltage letter (A, B, C, TD) is then appended at the end to complete the full catalog number.
Does the XTCE009B10 qualify for same-day shipping?
Yes — stocked XTCE009B10 variants ship same business day from Kent Electrical Supply’s warehouse in Emmaus, PA when ordered before 4:00 PM EST. Current stock quantities are shown on individual variant pages. For bulk orders or questions about availability, call us at 1-800-222-5129 or text your RFQ to 484-425-0652.
