Product Description

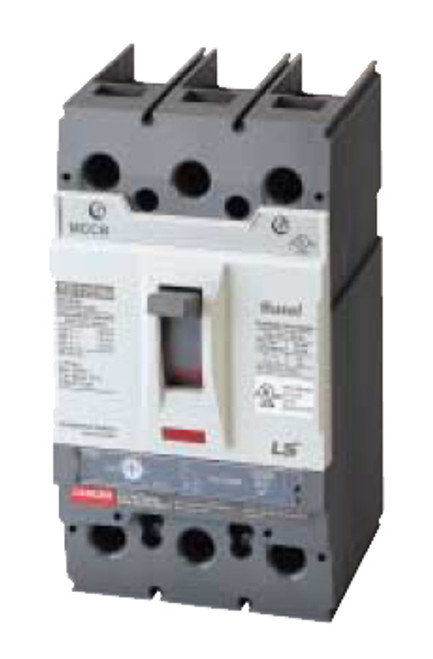

LS / Susol TD125NU 35kA, 40 AMP, 3 pole molded case circuit breaker (MCCB) with adjustable thermal and fixed magnetic trip unit and line and load side lugs.
On TD125U to TS800U circuit breakers, the thermal-magnetic is built in trip units. Some models of the TD&TS series circuit breakers are UL Listed to be applied at up to 100% of their current rating. Because of the additional heat generated, the use of specially designed enclosures and 90°C rated wire and the wire size are required when applying circuit breakers at 100% of continuous current rating.
Function:
Protection of power distribution
- Overload protection: Thermal protection with a fixed or adjustable threshold
- Short-circuit protection: Magnetic protection with a fixed or adjustable pick-up
Thermal magnetic types
- Time-Delay operation
An overcurrent heats and warps the bimetal to actuate the trip bar by the bimetal characteristic.
- Instantaneous operation
If the overcurrent is excessive, the armature is attracted and the trip bar actuated by electromagnetic force.
