Product Description

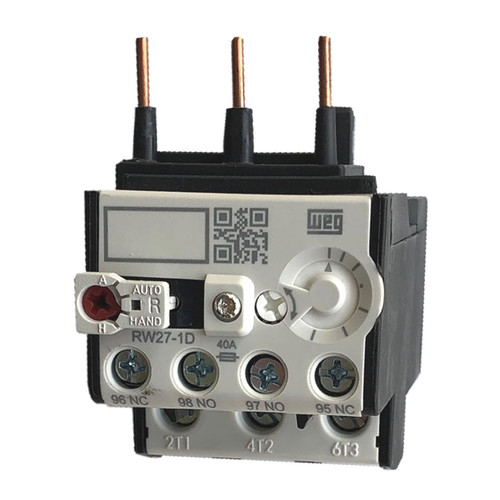

WEG RW27-1D3-U032 Thermal Overload Relay
The WEG RW27-1D3-U032 is a thermal overload relay designed to provide reliable motor protection when paired with compatible WEG contactors. Engineered for three-phase motor applications, this relay helps prevent overheating, phase loss damage, and costly downtime by accurately matching the motor’s full-load amperage (FLA). It is ideal for HVAC systems, pumps, compressors, conveyors, and industrial automation panels.
Quick Specifications
- Product Type: Thermal Overload Relay
- Protection Class: Class 10
- Trip Setting: Adjustable (based on motor FLA)
- Application: Three-Phase Motor Protection
- Mounting: Direct mount to compatible WEG contactors
- Auxiliary Contacts: 1 N.O. / 1 N.C. (Built-in)
Application Information
| Use Case | Details |
|---|---|
| Motor Starter Protection | Set dial to motor nameplate full-load amps |
| HVAC & Pumps | Protects compressors, fans, and pump motors |
| Industrial Automation | Prevents overload damage in motor control panels |
Product Features
- Adjustable Trip Setting: Accurately matches motor full-load amperage.
- Phase-Loss Sensitivity: Provides added protection against single-phasing conditions.
- Manual / Auto Reset: Selectable reset configuration for application flexibility.
- Compact Integration: Mounts directly to compatible WEG contactors.
- Industrial Durability: Designed for long-term performance in demanding environments.
Stock Item – Order before 4:00 PM EST for Same-Day Shipping.
