Product Description

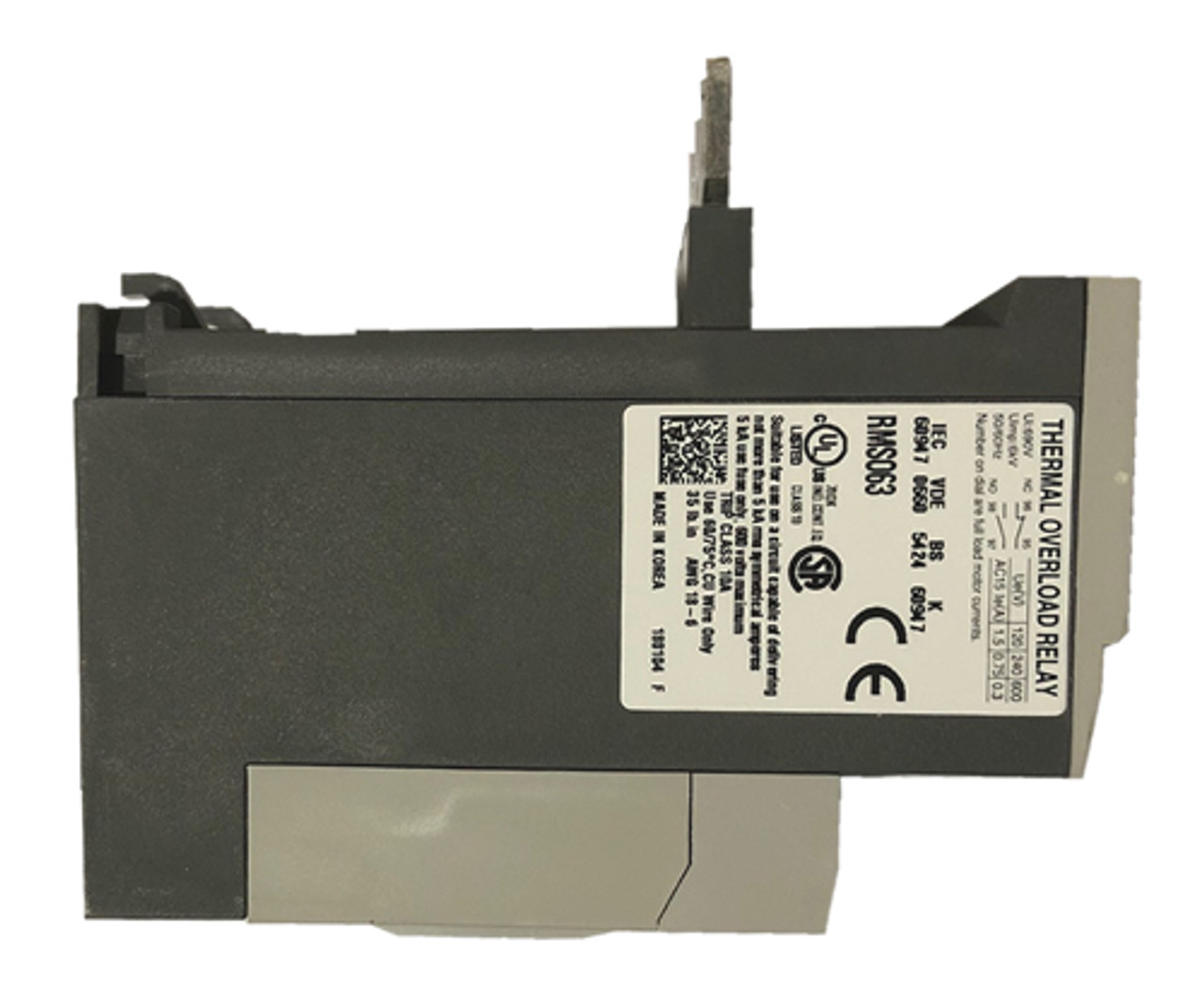

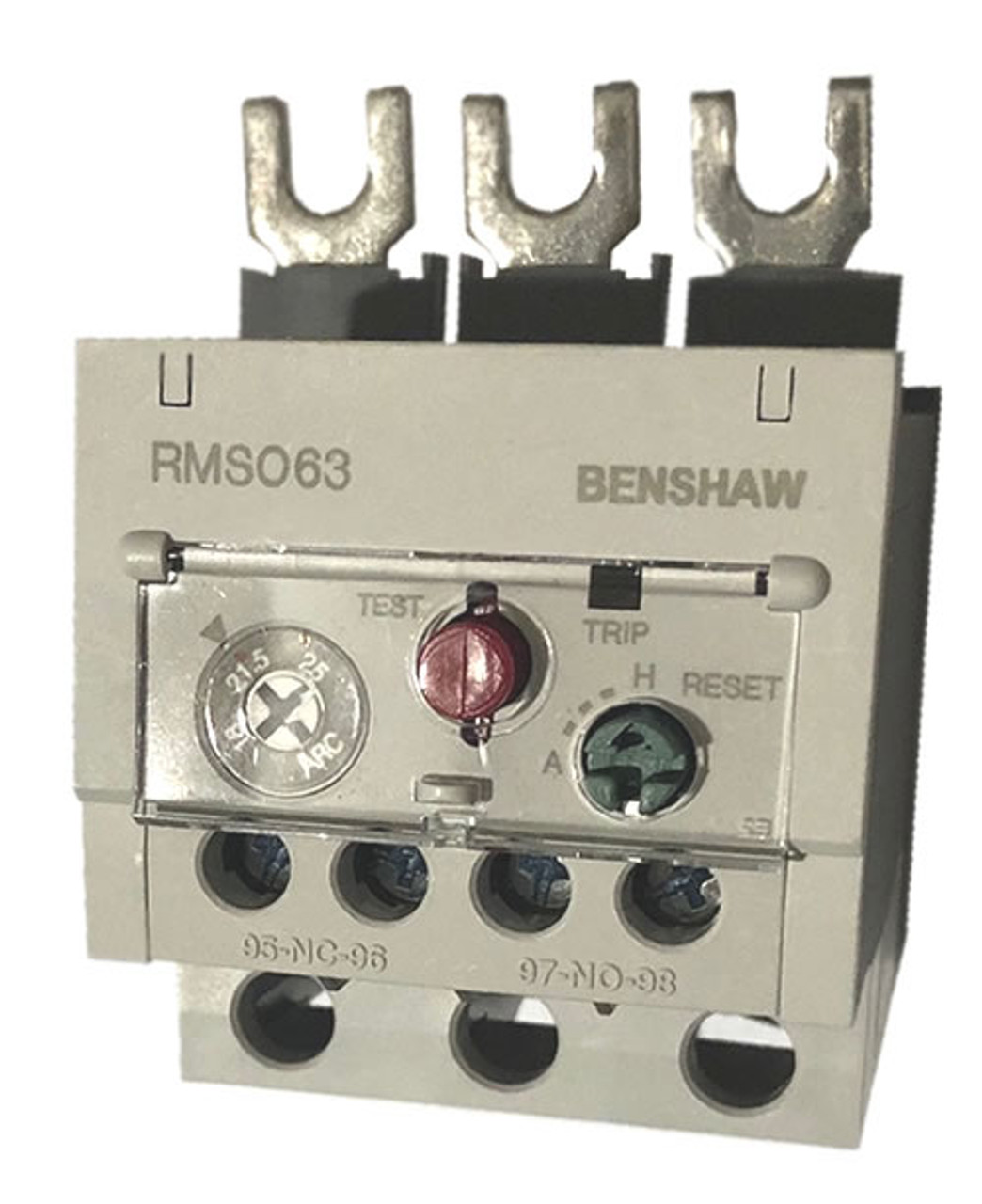

Benshaw RMSO63-15A thermal overload relay with possible adjustments ranging from 12 to 18 AMPS - Mounts onto the new style BENSHAW RC contactors 50 AMP (RC-50A) to 65 AMP (RC-65A) - Manual or Automatic reset - Class 10 tripping and push to test trip button
RMSO Series overload relays are bimetallic-style and are designed to protect AC circuits and motors against overloads, phase failure, long starting times and prolonged stalling of the motor.
-
Meet EN 60947-1, EN 60947-4-1 standards
-
CE, CSA, UL certified
- Trip indicator
-
Reset button/selector for manual or auto reset
- Finger safe terminals
-
Differential type phase failure protection
