Product Description
Benshaw RC-65A-56AC24 3 pole, 65 AMP contactor that is rated 30 H.P. @ 230 volt, 50 H.P. @ 460 volt 3 Phase and a 24 volt AC coil. Comes pre-installed with 2 side mounted auxiliary contacts (1 N.O./1 N.C. each), screw terminals and mounts on standard 35MM DIN rail.
H.P. ratings comparison
| RSC-65 | RC-65 | ||||||
| Single Phase | Three Phase | Single Phase | Three Phase | ||||
| 115v | 230v | 230v | 460v | 115v | 230v | 230v | 460v |
| 5 | 10 | 20 | 40 | 5 | 15 | 30 | 50 |

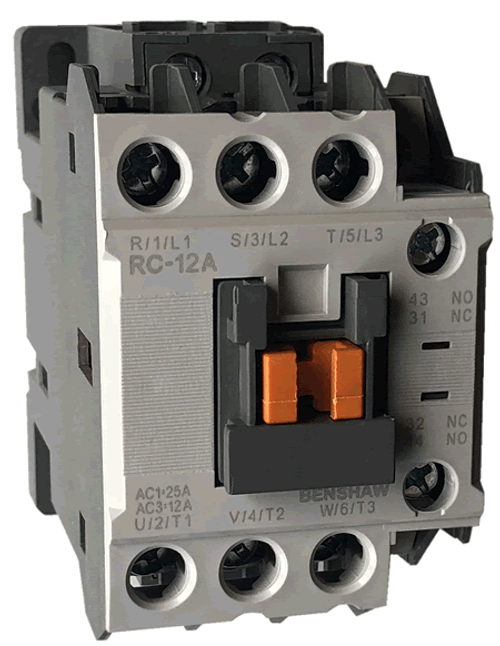

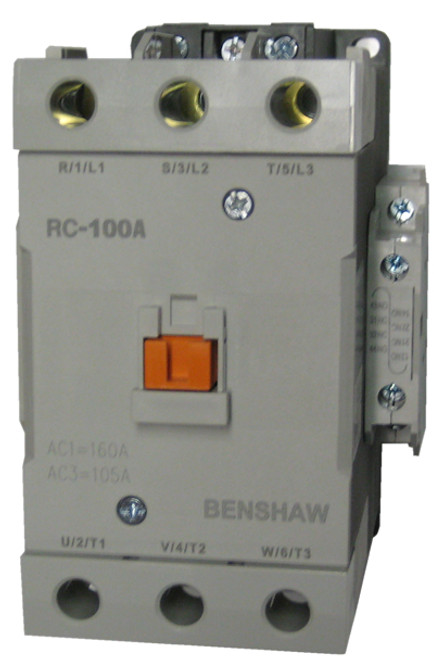

The new Benshaw line of RC contactors directly replaces the former RSC line of contactor and offers the same reliability, functionality and low cost as its predecessor. Each contactor, depending on frame size, comes pre-installed with either 1 or 2 side mounted auxiliary contacts blocks, each with 1 N.O. and 1 N.C. Frame size ups to 100A are mounted on DIN rail and have screw termination for easy installation.
