Product Description

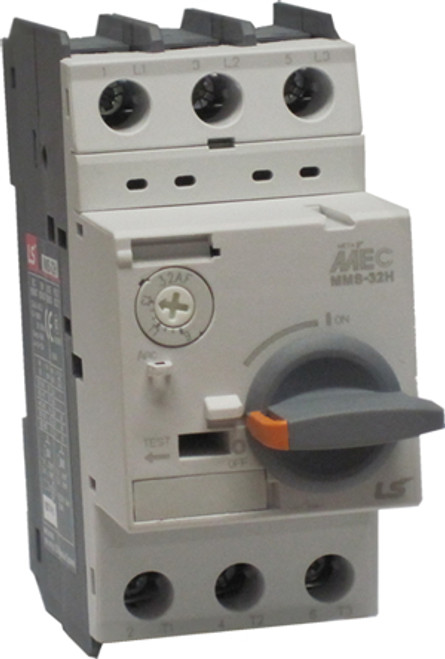

LS MMS-32H-1A manual motor starter with rotary on/off handle and is adjustable from 0.63 to 1 AMP. This motor protector has Class 10 tripping (trips in less than 10 seconds), phase loss protection and mounts on standard 35MM din rail. The MMS-32H-1A has a rated operational current of 1 AMP and a magnetic release operating current of 13 AMPS for small horsepower motor protection needs. Optional front and side mounted auxiliaries are available for signalling of tripped conditions.
| AMP Range | 0.63 to 1 AMP |
| Trip Class | 10 (10 seconds or less) |
| Phase loss protection | Yes |
| Magnetic Release | 13 AMPS |
| Handle | Rotary On/OFF |
DESCRIPTION
·Adjustable thermal release
·Magnetic release 13 Ie max.
·Trip class 10
·Ambient temperature compensation
·Phase-failure protection
