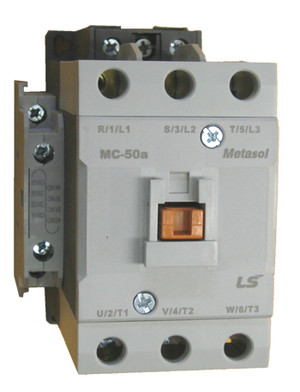

LS Electric MC-50A Metasol Contactor — 50A, 3-Pole, 40 HP @ 460V
The LS Electric MC-50A is a 50A, 3-pole IEC contactor from the Metasol MC series. Rated at 40 HP at 460V three-phase (50A AC-3 / 70A AC-1), the MC-50A includes 2 Normally Open (NO) + 2 Normally Closed (NC) built-in auxiliary contacts provided as two side-mounted blocks. It mounts on 35mm DIN rail or panel backplate and uses screw clamp terminals. LS Electric recommends the MC-50A as the direct replacement for the obsolete GMC-50 series. The compatible overload relay is the MT-32 series (65AF frame), which mounts directly to the contactor load terminals. Choose your coil voltage using the variant selector above.
Quick Specifications
- Current Rating: 50A AC-3 / 70A AC-1
- HP Rating: 25 HP @ 230V / 40 HP @ 460V (three-phase)
- Poles: 3-pole, non-reversing
- Coil Voltage: Selected by suffix — see table below
- Full Catalog Number Format: MC-50A-22-AC120 (22 = 2 NO + 2 NC)
- Aux Contacts (built-in): 2 NO + 2 NC (two side-mounted blocks, 1 NO + 1 NC each)
- Terminal Type: Screw clamp, power and control
- Mounting: 35mm DIN rail or screw panel mount

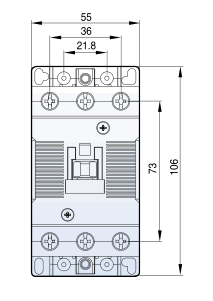

- Dimensions (AC coil): 79mm W × 106mm H × 122mm D
- Compatible Overload: MT-32 series (65AF frame, 0.1–40A range)
- Replaces: LS Electric GMC-50 series (obsolete)
- Certifications: UL, CE, RoHS
MC-50A Coil Voltage Variants
| Part Number | Coil Voltage | Coil Type |
|---|---|---|
| MC-50A-AC24 | 24V AC, 50/60 Hz | AC |
| MC-50A-DC24 | 24V DC | DC |
| MC-50A-AC120 | 120V AC, 60 Hz | AC — Most Common US |
| MC-50A-AC240 | 240V AC, 60 Hz | AC |
Not sure which coil voltage to order? Call Kent Electrical Supply at 1-800-222-5129 or text your RFQ to 484-425-0652.
HP Ratings by Voltage
| Supply Voltage | HP Rating | Phase |
|---|---|---|
| 200V AC | 15 HP | Three-phase |
| 230V AC | 25 HP | Three-phase |
| 460V AC | 40 HP | Three-phase |
LS Electric MC Series — Frame and Overload Comparison
| Model | AC-3 | HP @ 460V | Aux (built-in) | Overload | Replaces |
|---|---|---|---|---|---|
| MC-32A | 32A | 20 HP | 2 NO + 2 NC | MT-32 | GMC-32 |
| MC-40A | 40A | 30 HP | 2 NO + 2 NC | MT-32 | GMC-40 |
| MC-50A (this item) | 50A | 40 HP | 2 NO + 2 NC | MT-32 | GMC-50 |
| MC-65A | 65A | 50 HP | 2 NO + 2 NC | MT-32 | GMC-65 |
| MC-85A | 85A | 60 HP | 2 NO + 2 NC | MT-63 | GMC-85 |
Note on overload relay families: The MT-32 series covers MC-9B through MC-65A contactors. The overload relay frame size (65AF for MC-50A/65A vs. 40AF for MC-32A/40A) differs within the MT-32 family — verify the frame size suffix when ordering. The MC-85A and larger use the MT-63 series.
Product Features
- 40 HP at 460V: The MC-50A is rated for 40 HP at 460V three-phase (50A AC-3 / 70A AC-1), making it suitable for mid-range motor starters in pumps, compressors, fans, conveyors, and general industrial applications.
- 2 NO + 2 NC Built-In Auxiliary Contacts: The MC-50A ships standard with two side-mounted auxiliary contact blocks, each providing 1 NO + 1 NC — for a total of 2 NO + 2 NC. The full catalog number format is MC-50A-22-AC120, where “22” designates 2 NO + 2 NC. Additional front-mount auxiliary blocks are available for expanded control circuit requirements.
- MT-32 Overload Relay Compatible — 65AF Frame: The MC-50A uses the MT-32 series overload relay, specifically the 65AF frame size. The MT-32 mounts directly to the T1-T2-T3 load terminals for a complete motor starter assembly. Note that the same MT-32 overload family also covers the smaller MC-9B through MC-40A frames (at the 40AF frame size) as well as the MC-65A (also 65AF) — but the larger MC-85A and above use the separate MT-63 series.
- Direct GMC-50 Replacement: LS Electric designates the MC-50A as the manufacturer-recommended replacement for the obsolete GMC-50 series. The MC-50A is the current-production successor to the GMC-50, maintaining the same 50A AC-3 rating and 3-pole configuration.

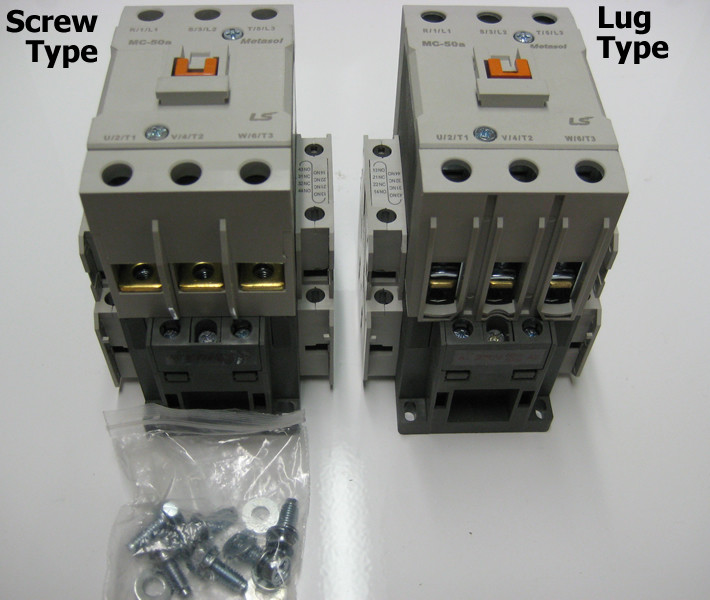

- Screw Clamp Terminals, DIN Rail or Panel Mount: Both power and control circuit connections use screw clamp terminals. Mounts on standard 35mm DIN rail or directly to a panel backplate. Finger-proof terminal design standard. AC coil dimensions: 79mm W × 106mm H × 122mm D.
- UL, CE, RoHS Certified: The MC-50A meets UL, CE, and RoHS requirements for industrial motor control applications worldwide.
Stock Item – Order before 4:00 PM EST for Same-Day Shipping.
Frequently Asked Questions
What overload relay is compatible with the MC-50A?
The MC-50A uses the LS Electric MT-32 series thermal overload relay, specifically the 65AF frame size. The MT-32/65AF mounts directly to the T1-T2-T3 load terminals of the MC-50A for a complete motor starter assembly. This may be unexpected — the MT-32 family name also covers the smaller MC-9B through MC-40A frames, but uses a different (smaller, 40AF) frame size for those contactors. For the MC-50A and MC-65A, specify the 65AF frame variant of the MT-32. The larger MC-85A and above use the separate MT-63 series. Call Kent Electrical Supply at 1-800-222-5129 for overload selection assistance.
Is the MC-50A a direct replacement for the GMC-50?
Yes — LS Electric designates the MC-50A as the manufacturer-recommended replacement for the obsolete GMC-50 series. The MC-50A maintains the same 50A AC-3 rating and 3-pole configuration as the GMC-50. If replacing a GMC-50, order the MC-50A with the matching coil voltage suffix.
What is the difference between the MC-50A and the MC-40A?
The MC-40A (40A AC-3) is rated 30 HP at 460V and uses the MT-32 overload at its 40AF frame size. The MC-50A (50A AC-3) is rated 40 HP at 460V and uses the MT-32 at the larger 65AF frame size. Both share the same 2 NO + 2 NC auxiliary contact configuration and screw clamp terminals. Choose based on your motor’s full-load amperage — if the motor FLA exceeds 40A, the MC-50A is the appropriate frame.
What is the difference between the MC-50A and the MC-65A?
The MC-50A (50A AC-3, 40 HP @ 460V) and MC-65A (65A AC-3, 50 HP @ 460V) are adjacent frame sizes in the LS Electric MC series. Both use the MT-32 overload at the 65AF frame size and include 2 NO + 2 NC auxiliary contacts. The MC-65A provides greater current capacity and HP rating. If your motor’s full-load amperage falls between 50A and 65A, the MC-65A is the appropriate selection.
How many auxiliary contacts does the MC-50A include?
The MC-50A includes 2 NO + 2 NC auxiliary contacts built-in as standard, provided as two side-mounted blocks each containing 1 NO and 1 NC. The full catalog number format is MC-50A-22-AC120, where “22” designates 2 NO + 2 NC. Additional front-mount blocks are available for expanded control circuit wiring.
Does the MC-50A qualify for same-day shipping?
Yes — stocked MC-50A coil variants ship same business day from Kent Electrical Supply’s warehouse in Emmaus, PA when ordered before 4:00 PM EST. Check individual variant pages for current stock on each coil voltage. For bulk orders or MT-32 overload relays, call us at 1-800-222-5129 or text your RFQ to 484-425-0652.
