Product Description

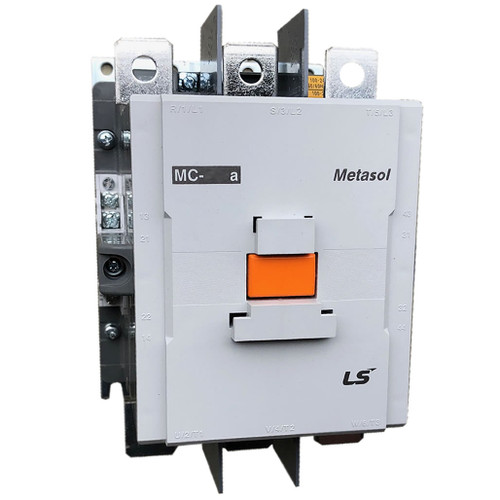

LS Metasol MC-330a 3 pole contactor rated at 330 AMPS AC-3 (350 AMP AC-1) with two side mounted auxiliary contacts, each with 1 normally open (N.O.) and 1 normally closed (N.O.) contact set. This Metasol contactor has an AC rated coil (must choose voltage above) and is rated for 100 H.P. @ 230 volt and 200 H.P. @ 460 volt 3 phase. As the suggested replacement for the now obsolete GMC-300, the MC-330a is an exact electrical and dimensional replacement and any existing accessories such as auxiliary contacts or overload relays will work as well.
| AMP Rating |
330 AMPS AC-3 350 AMPS AC-1 |
| Horsepower |
200 H.P. @ 460 volt 100 H.P. @ 230 volt |
| Coil Voltage | AC rated coil |
| Auxiliaries |
Two Side Mounted Each with 1 N.O./1 N.C. |
Description
- 3-pole(NO) main contact
- Finger proof design
- DIN rail or screw mountable
- AC or DC control in different physical size
- Front/side mountable accessories available
- Direct mountable overload relay available Rating
- 1NO and 1NC Auxiliary contact built-in as standard.
Sealed structure has improved its safety features so that no arc flash is exposed. In order to emphasize its durability as an industrial device, Metasol LS MC series adopt simple design form and sophisticated shape applying diamond cut concepts on product surface.
