Product Description

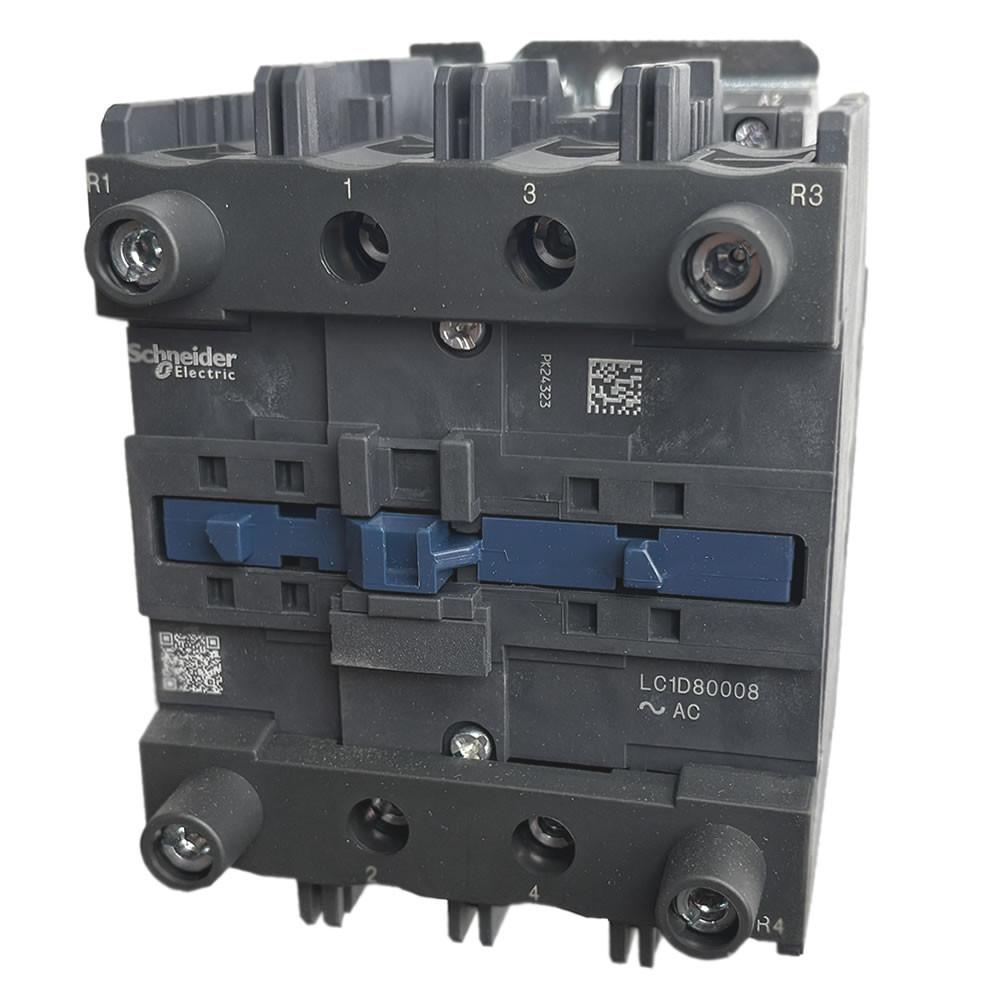

Schneider Electric LC1D80008 TeSys D Contactor — 4-Pole, 125A, 2NO/2NC
The Schneider Electric LC1D80008 is a 4-pole, 125A IEC contactor from the TeSys D / TeSys Deca line, featuring a 2NO/2NC power pole configuration. Rated at 125A AC-1 for resistive and mildly inductive loads, it is widely used in crane and hoist control circuits, reversing duty applications, capacitor bank switching, and 4-wire load switching in industrial automation panels. The LC1D80008 mounts on standard 35mm DIN rail and accepts the same TeSys D accessories as the rest of the LC1D range.
Quick Specifications
- Current Rating: 125A (AC-1) / 110A max continuous
- Poles: 4-Pole (2 N.O. + 2 N.C. power poles)
- Voltage Rating: 1000V (Ui) / 600V AC max operating
- Coil Voltage: Multiple options — select from 110V to 480V AC (see coil voltage table below)
- Auxiliary Contacts: None built-in (field-mountable LADN/LAD8N blocks available)
- Mounting: 35mm DIN Rail or Screw Mounting
- Terminal Type: Screw Clamp (AWG 2–10, Cu 75°C)
- Standard: IEC/EN 60947-4-1

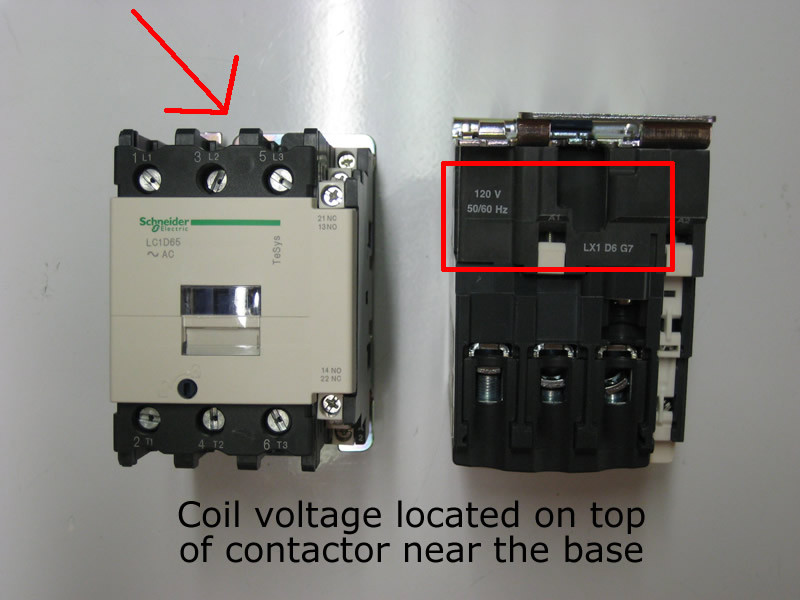

Coil Voltage Options
| Coil Voltage | Suffix Code | Full Part Number |
|---|---|---|
| 110V 50/60Hz AC | F7 | LC1D80008F7 |
| 120V 50/60Hz AC | G7 | LC1D80008G7 |
| 208V 50/60Hz AC | LE7 | LC1D80008LE7 |
| 220V 50/60Hz AC | M7 | LC1D80008M7 |
| 230V 50/60Hz AC | P7 | LC1D80008P7 |
| 240V 50/60Hz AC | U7 | LC1D80008U7 |
| 440V 50/60Hz AC | R7 | LC1D80008R7 |
| 480V 50/60Hz AC | T7 | LC1D80008T7 |
Typical Applications
| Application | Why 4-Pole 2NO/2NC |
|---|---|
| Crane & Hoist Control | Simultaneous switching of power and control circuits in a single contactor |
| Reversing Duty Circuits | 2NO/2NC configuration supports forward/reverse interlocking logic |
| Capacitor Bank Switching | High AC-1 rating suitable for capacitive load switching |
| 4-Wire Resistive Load Switching | All 4 conductors switched simultaneously including neutral |
| Heating & Lighting Control | High AC-1 current rating for resistive loads up to 125A |
Product Features
- 2NO/2NC Power Pole Configuration: The LC1D80008 has 2 normally open and 2 normally closed power poles in a single contactor body, making it ideal for crane duty, reversing, and 4-pole switching applications where both opening and closing contacts are required simultaneously.
- 125A AC-1 Rating: Rated for resistive and mildly inductive loads at 125A AC-1. Note: this is an AC-1 rated contactor — it is not rated for AC-3 motor switching at this current level. For motor switching applications, refer to the standard 3-pole LC1D series.
- TeSys D / TeSys Deca Accessory Compatible: Accepts the full range of TeSys D accessories including LADN front-mount and LAD8N side-mount auxiliary contact blocks, which snap on without tools.
- High Voltage Rating: Rated to Ui 1000V, suitable for use in high-voltage industrial circuits up to 600V AC operating voltage.
- DIN Rail & Screw Mount: Mounts on standard 35mm DIN rail or by screw fixing. Screw clamp terminals accept AWG 2–10 copper conductors rated 75°C.
- Global Certifications: Compliant with IEC/EN 60947-4-1, UL, CSA, and CE standards for domestic and international panel builds.
Stock Item – Order before 4:00 PM EST for Same-Day Shipping.
Frequently Asked Questions
What does LC1D80008 mean?
The part number follows Schneider Electric’s TeSys D naming convention: LC1 = IEC contactor, D = TeSys D frame, 800 = large frame 4-pole variant, 08 = 2NO/2NC contact configuration. The coil voltage suffix is appended at the end — for example, LC1D80008G7 is the 120V AC version and LC1D80008T7 is the 480V AC version. Select your coil voltage from the dropdown above.
Can the LC1D80008 be used for motor starting?
The LC1D80008 is rated at 125A AC-1 for resistive and mildly inductive loads — it is not an AC-3 rated contactor and should not be used for direct-on-line three-phase motor starting at this current level. For motor starting applications, use the standard 3-pole LC1D series (LC1D09 through LC1D150) which carry AC-3 ratings. The LC1D80008 is specifically suited for crane duty, reversing circuits, capacitor switching, and 4-wire resistive load control.
What is the difference between 2NO/2NC and a standard 3NO/1NC contactor?
A standard 3-pole contactor (3NO) switches all three phases of a motor circuit simultaneously. The LC1D80008 with 2NO/2NC has two normally open power poles and two normally closed power poles — making it suited for applications where opposing switching action is required in a single device, such as crane hoist up/down circuits or reversing contactors where the 2NC poles provide the interlocking function without additional wiring.
Does the LC1D80008 come with auxiliary contacts?
No — the base LC1D80008 ships without auxiliary contacts. LADN front-mount and LAD8N side-mount auxiliary contact blocks from the TeSys D accessory range snap on without tools and are fully compatible with the LC1D80008.
What wire size does the LC1D80008 accept?
The LC1D80008 screw clamp terminals accept AWG 2 through AWG 10 copper conductors rated to 75°C. Terminal torque is 100 lb-in. Ensure all conductors are rated appropriately for the 125A AC-1 load before installation.
Is the LC1D80008 in stock for same-day shipping?
Yes — the LC1D80008 is a stocked item at Kent Electrical Supply’s warehouse in Emmaus, PA. Orders placed before 4:00 PM EST ship the same business day. Current stock quantity is shown on this page. If you need a specific coil voltage that shows low or no stock, call us at 1-800-222-5129 or text your RFQ to 484-425-0652.
Other Details
 |
Schneider Electric offers a 1 year warranty on this contactor Schneider Electric does not cover reimbursement for labor, removal, installation or any other expense which resulted from the repair or replacement |
