Product Description
Benshaw KPMX3TS Touchscreen Keypad (HMI) Replacement
The Benshaw KPMX3TS Touchscreen Keypad is a genuine, high-resolution Human Machine Interface (HMI) designed specifically for the programming, control, and monitoring of Benshaw soft starter chassis. This unit serves as the primary user interface, providing real-time diagnostics, system status updates, and full access to all motor control parameters.
It is the direct and complete replacement for the older KPMX3SLCD and KPMX3CBL2M keypad models.
Key Benefits & What's Included
- Direct Compatibility: Designed for use with Benshaw RB2, RB3, RX2E, and RX3E series soft starter chassis.

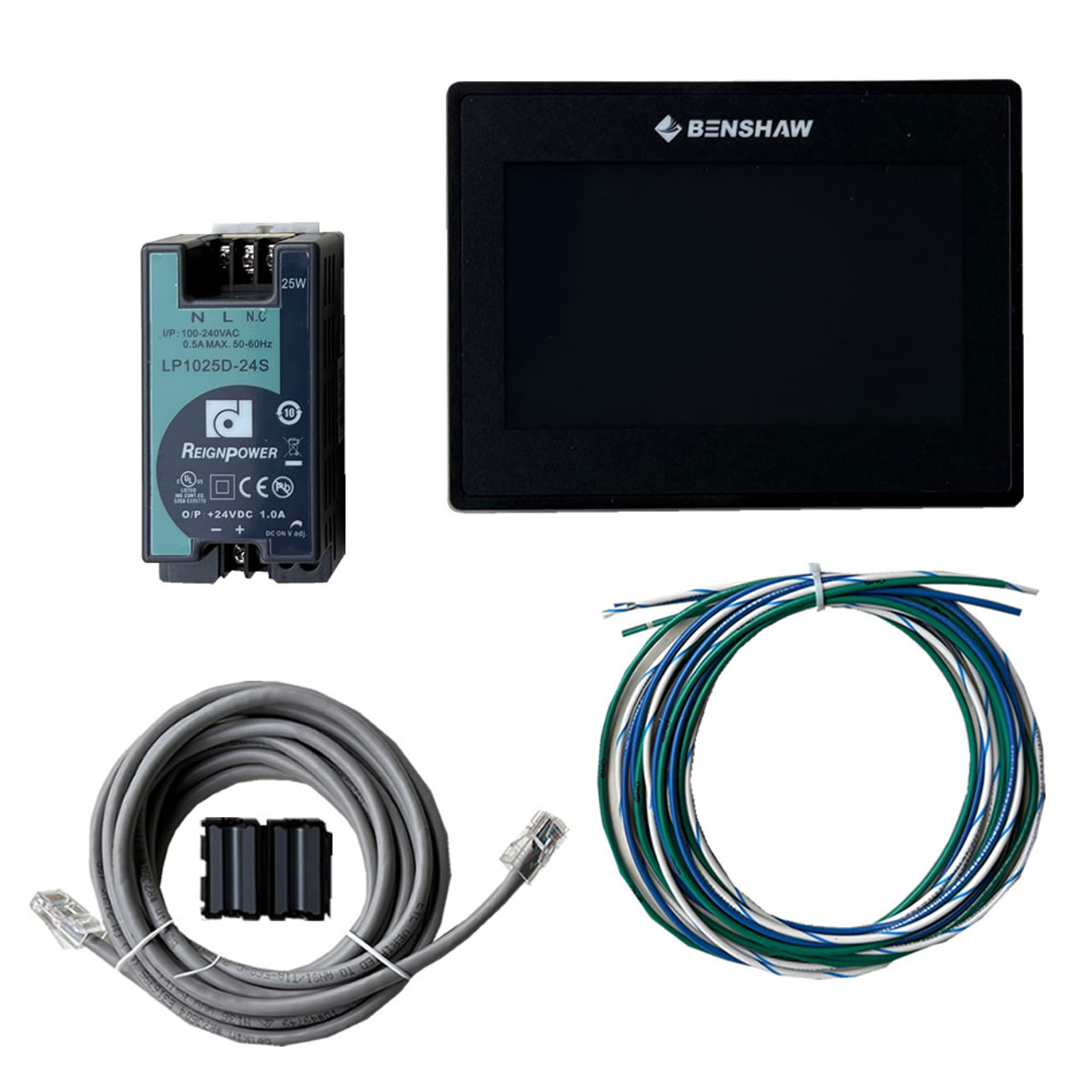

- Full Replacement Kit: Includes the touchscreen keypad unit, a 2-meter RJ45 communication cable, power supply, and comprehensive installation instructions.
- User Interface: High-resolution screen for simplified programming and monitoring of the soft starter.
- Fault Diagnostics: Provides clear and immediate fault codes and system status to minimize troubleshooting time.
- Seamless Integration: Designed to maintain the integrity of NEMA 12 and NEMA 3R enclosure ratings upon installation.
Technical Specifications & Advantages
| Feature | Detail |
|---|---|
| Product Type | Touchscreen Keypad (HMI) |
| Replaces | KPMX3SLCD, KPMX3CBL2M |
| Connection Type | RJ45 Communication Cable (2m included) |
| Mounting | Panel/Enclosure Door Mount (Remote Control) |
| Primary Use | Programming, Monitoring, and Fault Display |
Frequently Asked Questions (Keypad)
- Q: Which Benshaw soft starters is the KPMX3TS Keypad compatible with?
- A: The KPMX3TS is the direct replacement interface for the Benshaw RB2 and RB3 soft starter chassis, and is also compatible with the newer RX2E and RX3E series.
- Q: What is the KPMX3TS used for?
- A: The KPMX3TS is the Human Machine Interface (HMI). It is used to program, view the operating status, and access diagnostics and fault codes for the connected Benshaw soft starter.
- Q: Does the KPMX3TS mount directly to the soft starter chassis?
- A: No. The KPMX3TS is designed for panel or enclosure door mounting. It connects to the soft starter chassis remotely via the supplied 2-meter RJ45 cable to allow remote viewing and control.
