Product Description

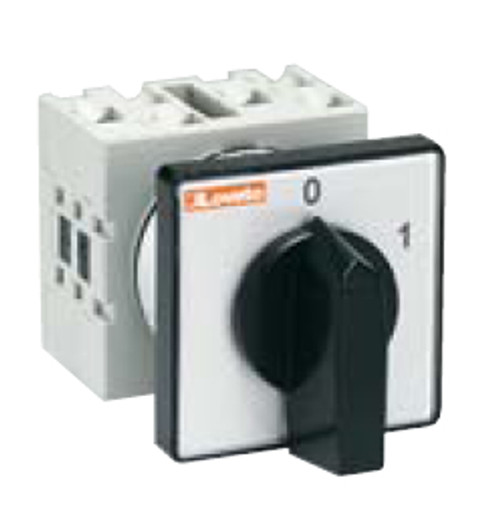

Lovato GX16 91U 20 AMP Rotary CAM switch - Two-pole, 1 Wafer, Scheme 91
Suitable for circuit connection, changeover, switching on and off as well as motor starting. Possibility of special circuit schemes. IP40 or IP65 front degree of protection. 2-screw fixing and a wide range of features.
General characteristics
- 16 to 40A capacity
- Extended mechanical and electrical life
- Switching angles: 30°, 45°, 60° and 90°
- Silver-alloy dual-breaking contacts. Direct (positive-guided) opening operation ; safety function per IEC/EN 60947-5-1
- IP65 front degree of protection; IP20 protection of contacts
- Legend marking is standard supplied as illustrated in the catalog number table; any other on request.
The square section of the contact body allows installation side by side. For fastening to the board base there is a connection on a DIN guide coupled with two holes for the alternative use of screws. Due to the wide choice of standard layouts, the GX models can be used as switches, line switches, changeover switches, reversing switches, delta-star switches, voltmeter switches and ammeter switches. Special layouts can be made on request: a special form is available which helps the customer to let us have the true requirements. The GX series cam switches have 4 electric sizes subdivided on 2 dimensional sizes (16A - 20A with size 48x48mm / 32A - 40A with size 65x65mm).
