Product Description

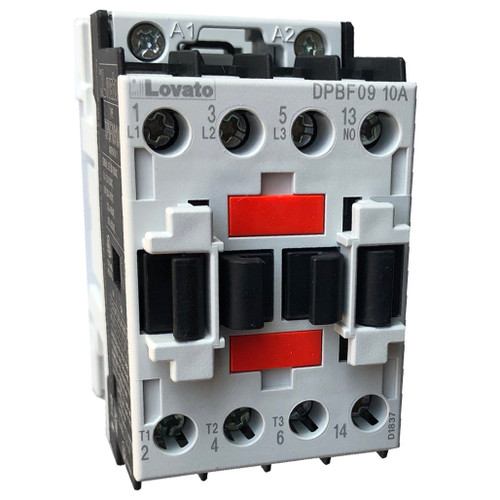

Lovato DPBF0910A230 3-pole 9 AMP AC-3 (25 AMP AC-1) definite purpose contactor with a 230v50/60Hz volt AC coil. Rated for 3 H.P. at 230 volt and 5 H.P. at 460 volt, this IEC DP contactor comes with 1 normally open (N.O.) base mounted auxiliary contact, screw terminals and can be either screwed to a back plate or mounted on standard 35MM DIN rail. Accessories that are available for the Lovato DPBF0910A230 definite purpose contactor include front and size mounted auxiliary contacts (up to 4 additional poles) and load side direct mount overload relays.
AMP Rating |
9 AMP AC-3 25 AMP AC-1 |
Coil Voltage | 230 volt AC |
Horsepower |
3 H.P. @ 230 volt 5 H.P. @ 460 volt |
Auxiliary Contact | Normally Open (N.O.) |
Terminals | Screw |
![](http://www.kentindustries.com/lovato/lovato_coil_voltage.jpg)
- Ideal contactors for air conditioning, heating, refrigeration, ventilation
- Wide range coils +10% to -20%
- Finger safe terminals
- Four-pole versions available
- Extensive assortment of add-on blocks and accessories
- Compact design
STARTER ASSEMBLY
The assembly and wiring of electromechanical starters is extremely fast and reliable. Versatile electrical and mechanical connecting systems provide easy and foolproof assembly of compact starters.
EFFORTLESS THERMAL OVERLOAD RELAY LINK
During the connection of the thermal overload relay to the contactor, its auxiliary contact is simultaneously linked to the contactor coil terminal rigid connector.
The complete overload relay fixing is obtained with one single operation and without other connections.
