Product Description

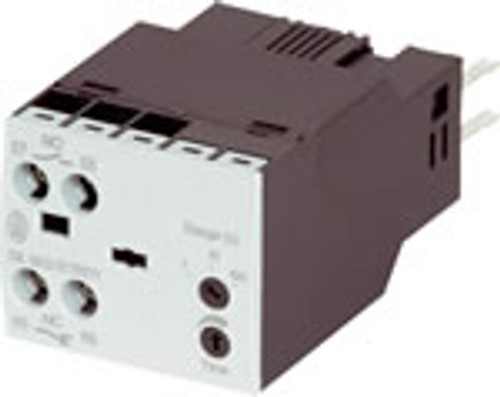

Eaton/Moeller DILM32-XTED11-100 (RAC130) electronic timing module that is rated for 100 to 130 volt AC, has a timing range of 5 to 100 seconds, and mounts to the front of any DILM7 through DILM32 three or four pole contactor along with any DILA 4 pole industrial control relay. This off delay Eaton timer comes with one normally open and one normally closed auxiliary contacts and screw terminals for easy installation. When the Moeller DILM32-XTED11-100 is installed, no other auxiliary contact block, suppressors or voltage indicators can be used in conjunction with this timer.
| Rated voltage | 100 to 130 volt AC |
| Timing Range | 5s to 100s |
| Auxiliaries |
1 normally open 1 normally closed |
| Installs on: |
DILM7 through DILM32 contactors DILA relays |
Click here to view a spec sheet on this Eaton/Moeller DILM32 electronic timing module
The DILM contactor series features dual power terminals on units up to 400A. The clamping chambers are cleverly designed to apply sufficient holding pressure to cables of varying sizes. Conventional designs are often limited by the size of the largest cable in the chamber. The line also features ingenious mechanical interlocks (rocker and ball style) that allow fast and easy assembly of contactor combinations without requiring additional space.
Auxiliary contact blocks for new DIL M contactors have mechanically linked contacts for added safety in control circuits. Mechanically linked auxiliary contacts insure that, throughout the life of the contactor, NO and NC contacts will never close simultaneously…even if a contact welds. In addition, DIL M contactors to 65A have “mirror” contacts, which ensure that all auxiliary contacts (whether built-in or add-on) function correctly in relation to the power contacts.
