Product Description

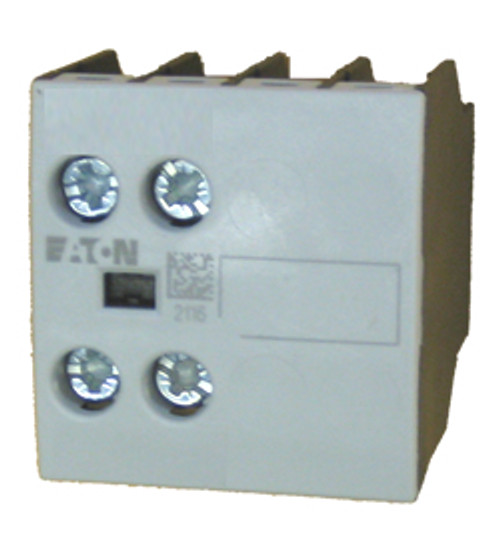

Eaton / Moeller DILM32-XHI11 two-pole auxiliary contact block with 3 normally open and 1 normally closed contacts and screw terminals. This front mounted auxiliary snaps onto any DILM contactor (up to 32 AMPS) and Eaton XTCE contactors up to frame C and comes with screw terminals. Only one DILM32-XHI11 auxiliary block can be used per relay or contactor but other options in 4 pole front mounted and 2 pole side mounted are available.
| Number of Poles | 2 |
| Mounting | Front |
| Contact arrangement |
1 normally open 1 normally closed |
| Terminals |
Screw |
Flexibility, safety and economy… Moeller’s DIL series of control relays offer modern features in a compact, smart design. The line is made up of two models; DILA relays, which are based on Moeller’s new range of popular DILM contactors; and DILER relays, which are built in the same compact frame as our miniature DILEM contactors. Both lines share the same accessories with their contactor family. This simplifies stocking and makes ordering fast and efficient.
Base DILA control relays have four-poles rated to 10 amps, (UL/CSA general purpose). Two and four-pole auxiliary contact blocks may be added to increase the relay’s capacity to a maximum of eight poles. Various NO and NC configurations are available, including late break and early make. Auxiliary contacts are also rated to 10 amps. A comprehensive range of accessories from suppressors and voltage indicators to amplifiers and timing modules make DIL A relays a great choice for applications demanding maximum flexibility.
