Product Description

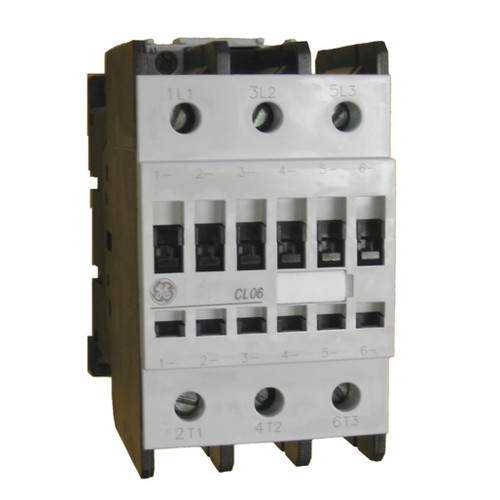

GE CL06 3 pole contactor is rated for 15 H.P. @ 230 volt, 30 H.P. @ 460 volt 3 Phase and has an AC coil (must specify coil voltage above). The 48 AMP GE contactor comes with line and load side coil connections, can be mounted on standard 35MM DIN rail and has screw terminals. Up to 4 top mounted single pole auxiliary contact blocks can be added along with 1 two-pole side mounted auxiliary and direct mount overload relays with adjustable AMP ranges to achieve maximum motor protection.
| AMP Rating | 48 AMPS |
| Coil Voltage | AC coil |
| Horsepower |
30 H.P. @ 460 volt 15 H.P. @ 230 volt |
| Auxiliary contact | None |
GE offers a line of 3 pole IEC and UL rated contactors that range from 5 H.P. @ 460volt up to 80 H.P. and accessories such as 4 pole auxiliary contact blocks and overload relays are available. Each contactor has the option to be mounted on the DIN rail or screwed to the base plate a panel for easy installation. 1 base contact (normally open) comes standard and each GE contactor has screw termination for easy wiring.
