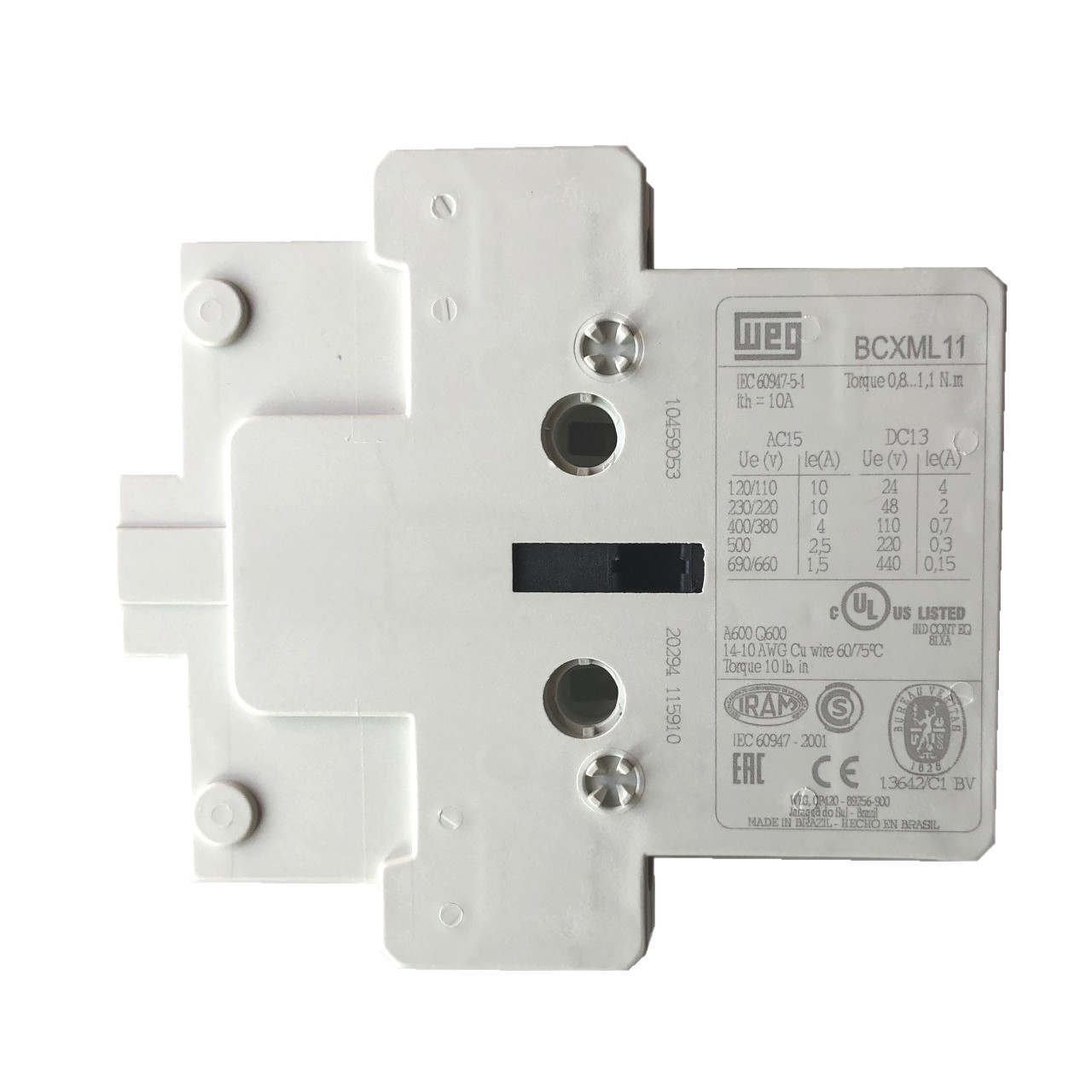

WEG BCXML11 Auxiliary Contact Block — 1 NO + 1 NC, Side Mount
The WEG BCXML11 is a side-mount auxiliary contact block for WEG CWM series IEC contactors. It provides 1 Normally Open (NO) + 1 Normally Closed (NC) auxiliary contacts and mounts to the side of CWM contactors rated from CWM9 through CWM300. The BCXML11 uses screw terminals, is rated for 660/690V insulation voltage, and is the authorized replacement for the GE BCLL11 auxiliary contact block.
Quick Specifications
- Brand: WEG
- Contact Configuration: 1 NO + 1 NC (2-pole)
- Mount Type: Side mount
- Contactor Current Range: 50A
- Rated Insulation Voltage Ui: 660/690V max
- Terminal Type: Screw terminals
- Wire Range: 14–10 AWG
- Tightening Torque: 0.8 Nm

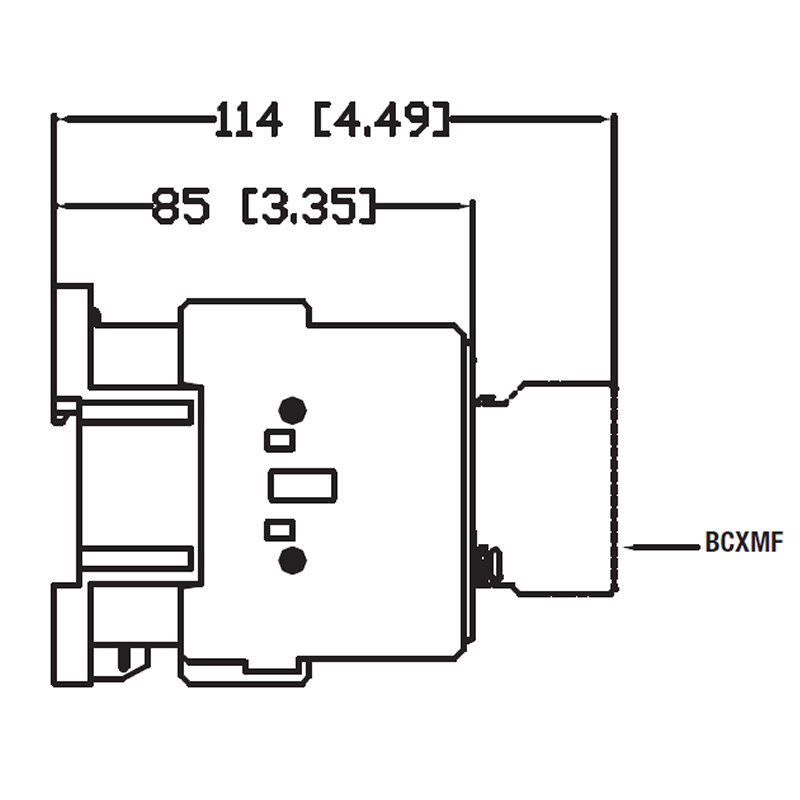

- Dimensions: 0.44” H × 3.06” W × 3.35” D
- Compatible Contactors: CWM9 through CWM300 / CWM9N through CWM300N
- Not for: CWM400–CWM800 (requires BCXML11 CWM800)
- GE Cross-Reference: GE BCLL11 (authorized replacement)
- WEG Catalog Number: 10459053
Compatible WEG CWM Contactors
| Contactor Range | BCXML11 Compatible? | Max Side Aux Blocks |
|---|---|---|
| CWM9 – CWM25 | Yes | 2 blocks |
| CWM32 – CWM105 | Yes | 2 blocks |
| CWM115 – CWM300 | Yes | Consult catalog |
| CWM400 – CWM800 | No — use BCXML11 CWM800 | N/A |
WEG CWM Auxiliary Contact Block Family
| Part Number | Configuration | Mount | Compatible Range |
|---|---|---|---|
| BCXMF10 | 1 NO only | Front | CWM9–CWM105 |
| BCXMF01 | 1 NC only | Front | CWM9–CWM105 |
| BCXML11 (this item) | 1 NO + 1 NC | Side | CWM9–CWM300 |
| BCXML20 | 2 NO | Side | CWM9–CWM300 |
| BCXMRL11 | 1 NO + 1 NC (2nd block) | Side | CWM9–CWM300 |
| BCXML11 CWM800 | 1 NO + 1 NC | Side | CWM400–CWM800 |
Product Features
- 1 NO + 1 NC Side-Mount Configuration: The BCXML11 adds one Normally Open and one Normally Closed auxiliary contact to any compatible WEG CWM contactor by mounting to the side of the contactor body. This is distinct from the front-mount BCXMF series (BCXMF10, BCXMF01) which attaches to the front face. Side mounting is typically used when additional auxiliary contacts are needed alongside an existing front-mount block, or when panel space requires side placement.
- Compatible with CWM9 through CWM300: The BCXML11 fits the full range of standard WEG CWM IEC contactors from the smallest frame (CWM9, 9A AC-3) through the CWM300 (300A AC-3). Up to two BCXML11 side blocks can be installed on CWM9 through CWM105 contactors. For the larger CWM400 through CWM800 contactors, the BCXML11 CWM800 is the correct part — not this BCXML11.
- Authorized GE BCLL11 Replacement: The BCXML11 is the authorized WEG replacement for the GE BCLL11 auxiliary contact block. If your panel documentation, BOM, or equipment schematic references the GE BCLL11, the WEG BCXML11 is the correct current replacement.
- Screw Terminals, 14–10 AWG: Both the NO and NC contact circuits use screw terminals accepting 14–10 AWG wire at 0.8 Nm tightening torque. Rated insulation voltage Ui max is 660/690V.
- Second Side Block Available: If more than one set of side-mounted auxiliary contacts is needed, the BCXMRL11 is the second side-mount block (1 NO + 1 NC) designed to stack with the BCXML11 on CWM9–CWM300 contactors.
