Product Description

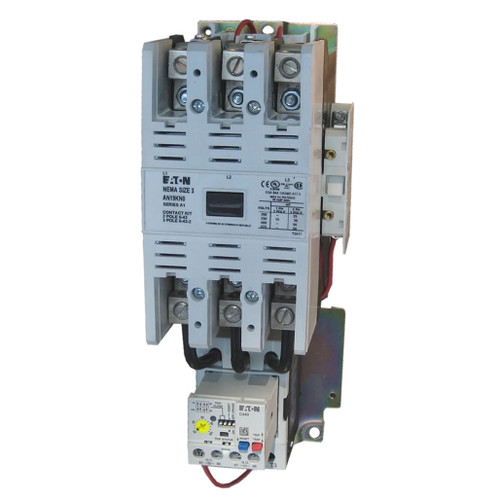

Eaton / Cutler Hammer Freedom Series NEMA Size 3 Starter AN19KN0 rated at 90 AMPS with an AC rated coil (specify coil voltage above) and C440 electronic overload relay that is adjustable from 20 to 100 AMPS. This complete starter is rated for 30 H.P. @ 230 volt and 50 H.P. @ 460 volt 3 Phase and has a side mounted auxiliary with 1 N.O. contact. The attached C440 electronic overload that comes with the Eaton AN19KN0 unit has a selectable trip class (10, 20 or 30), two alarm (N.O.) and two fault (N.C.) auxiliary contacts, phase loss protection and on/off phase unbalance and ground fault options.
| NEMA Size | 3 |
| AMP Rating | 90 AMPS |
| Coil Voltage | AC Rated Coil |
| Horsepower |
30 H.P. @ 460 volt 50 H.P. @ 230 volt |
| Overload Range | 20-100A |
Click here for a PDF file on this Eaton AN19 NEMA Rated Starter
Eaton’s new electronic overload relay (EOL) is the most compact, high featured, economical product in its class. Designed on a global platform, the new EOL covers the entire power control spectrum including NEMA, IEC and DP contactors. The NEMA and DP versions are offered with the C440 designation while the IEC offering has the XT designation. The electronic design provides reliable, accurate and value driven protection and communications capabilities in a single compact device. It is the flexible choice for any application requiring easy to use, reliable protection.
