Product Description

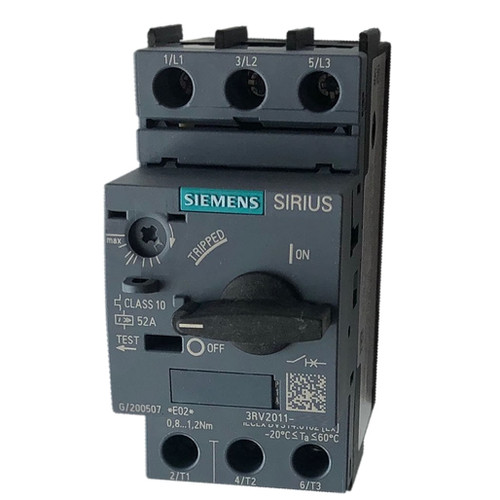

Siemens 3RV2011-1CA10 motor starter protector with an adjustable AMP range from 1.8 to 2.5 AMPS, a rotary ON/OFF handle and class 10 overload trip characteristics (trips in 10 seconds or less). This Sirius 3RV2011 motor protector has magnetic trip elements for short circuit protection, screw terminals and mounts on standard 35MM DIN rail for easy installation and removal. Optional 3RV2901 2 pole auxiliary contacts, in front or side mount, can be added for motor disconnection during a motor over amperage condition or for signalling via a pilot device.
| AMP range | 1.8A to 2.5A |
| Protection | Class 10 |
| Terminals | Screw |
| Phase loss sensitive? | Yes |
| Mounting style | DIN Rail |
This series of Siemens Sirius 3RV2011 manual motor starters are approved for Type E protection, otherwise known as a self-protected combination motor controller. With a UL approval, the 3RV2011-1CA10 can be used downstream of a fuse or circuit breaker to provide this level of protection up to 2.5 AMPS. The benefit is that all these protections are provided in one device: overload and short circuit protection, disconnect and motor control. When combined with a the appropriate sized Siemens 3RT2 contactor, full combination motor protection is achieved in one compact, fully functional unit. Contact Kent Industries today at 800.222.5129 so that we can determine the appropriate size and range needed for your application as our staff is fully trained and has over 60 combined years in motor controls.
