Product Description

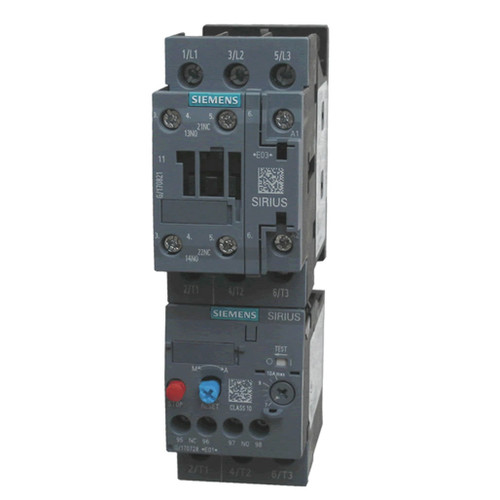

Siemens 3RT2026-1A Sirius 3 Pole 25 AMP Size 0 contactor with a 3RU2126-4AB0 overload that is adjustable from 11 to 16 AMPS
AMP Rating : 25 AMPS AC-3 / 40 AMPS AC-1
Coil Voltage : must specify
Poles : 3
Base mounted Auxiliary contacts : 1 N.O. & 1 N.C.
Terminals : Screw type
Mounting type : DIN Rail or screw mounted
H.P. ratings comparison
| 3RT1026 | 3RT2026 | ||||||
| Single Phase | Three Phase | Single Phase | Three Phase | ||||
| 115v | 230v | 230v | 460v | 115v | 230v | 230v | 460v |
| 2 | 3 | 7.5 | 15 | 2 | 3 | 7.5 | 15 |
DESIGN
The 3RT2026-1AK60 contactor is suitable for use in any climate. They are safe from touch to DIN VDE 0106 Part 100. The 3RT contactors are available screw, spring-type, or ring lug connections. An auxiliary contact is integrated in the basic unit of size S00 contactors. The basic units of sizes S0 to S3 only contain the main conducting paths. All the basic units can be extended with auxiliary switch blocks. Cabinet units with 2 NO + 2 NC (terminal designations acc. to EN 50 012) are available as of size S0; the auxiliary switch block is removable. The size S3 contactors have removable box terminals for the main conductor connections. Ring cable lugs or bars can thus also be connected.
CONTACT RELIABILITY
If voltages ≤ 110 V and currents ≤ 100 mA are to be switched, the auxiliary contacts of 3RT contactors and 3RH contactor relays should be used to ensure good contact stability. These auxiliary contacts are suitable for electronic circuits with currents ≥ 1 mA at a voltageof 17 V.
