Product Description

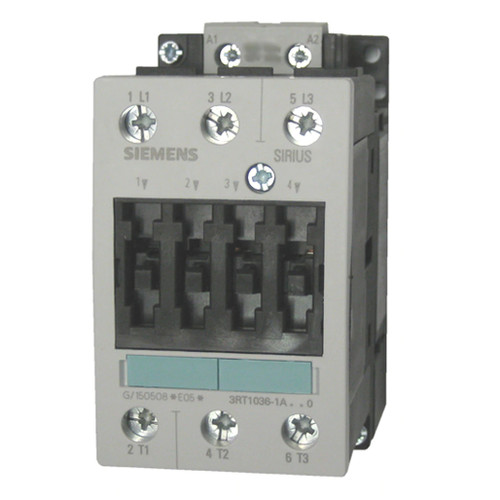

The Siemens Sirius 3RT1036-1A three pole IEC contactor is rated for 50 AMPS AC-3 and 60 AMPS AC-1, 15 H.P. @ 230 volt and 40 H.P. @ 460 volt 3-phase and has an AC coil voltage. This 3 pole Siemens contactor comes with screw terminals and mounts on standard 35MM DIN rail for easy installation. Optional 3RU1136 thermal or 3RB2036 solid state overload relays from 6 to 50 AMPS can be installed on the load side of this contactor for complete motor protection. Front and side mounted auxiliary contacts, in two, three and four pole versions, can be mounted to this 50 AMP contactor to add additional signaling contacts in both normally open and normally closed variations.
 |
Electrical Ratings | |
|
Contactor Dimensions | |
|
Coil Voltages | |
|
Auxiliary Contacts | |
|
Overload Relays |
 |
Click here for a replacement contact kit |
One 4-pole or up to four single pole auxiliary switch blocks (with screw or Cage Clamp connections) can be snapped onto the front of the contactors. When the contactors are energized, the NC contacts open before the NO contacts close.
