Product Description

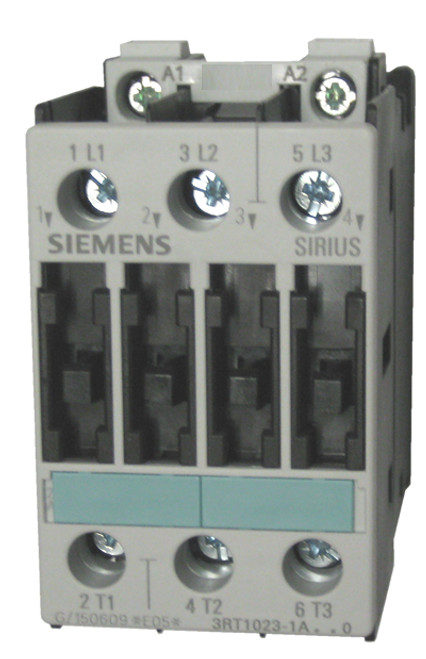

The Siemens 3RT1023-1A three pole IEC contactor is rated for 9 AMPS AC-3 and 40 AMPS AC-1, 3 H.P. @ 230 volt and 5 H.P. @ 460 volt 3-phase and has an AC coil voltage. This Siemens 3 pole contactor comes with screw terminals and mounts on standard 35MM DIN rail for easy installation. Optional 3RU1126 thermal or 3RB2026 solid state overload relays from 1 to 25 AMPS (though AMP ratings over 9 AMPS are not recommended) can be mounted to the load side of this contactor for complete motor protection. Auxiliary contacts, in two, three and four pole versions, can be mounted to the top of this 9 AMP contactor to add additional signaling contacts in both normally open and normally closed variations.
 |
Electrical Ratings | |
|
Contactor Dimensions | |
|
Coil Voltages | |
|
Auxiliary Contacts | |
|
Overload Relays |
Need help finding the coil voltage?
Click here for help finding the coil.
One 4-pole or up to four single pole auxiliary switch blocks (with screw or Cage Clamp connections) can be snapped onto the front of the contactors. When the contactors are energized, the NC contacts open before the NO contacts close.
